This page is passe. Go here instead!    The Knot K11a365 Visit K11a365's page at Knotilus! Acknowledgement

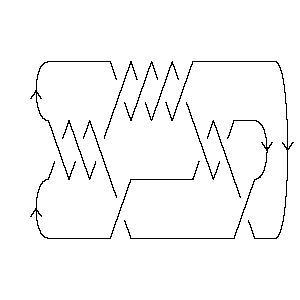

DrawMorseLink

PD Presentation:

X10,2,11,1 X14,4,15,3 X16,6,17,5 X18,8,19,7 X20,10,21,9 X22,12,1,11 X2,14,3,13 X4,16,5,15 X8,18,9,17 X6,20,7,19 X12,22,13,21

Gauss Code:

{1, -7, 2, -8, 3, -10, 4, -9, 5, -1, 6, -11, 7, -2, 8, -3, 9, -4, 10, -5, 11, -6}

DT (Dowker-Thistlethwaite) Code:

10 14 16 18 20 22 2 4 8 6 12

Alexander Polynomial:

4t-3 - 8t-2 + 9t-1 - 9 + 9t - 8t2 + 4t3

Conway Polynomial:

1 + 13z2 + 16z4 + 4z6

Other knots with the same Alexander/Conway Polynomial:

{...}

Determinant and Signature:

{51, 6}

Jones Polynomial:

q3 - 2q4 + 4q5 - 5q6 + 7q7 - 8q8 + 8q9 - 6q10 + 5q11 - 3q12 + q13 - q14

Other knots (up to mirrors) with the same Jones Polynomial:

{...}

A2 (sl(3)) Invariant:

q10 - q12 + q14 + q18 + q20 - q22 + 2q24 + 2q28 + 2q30 - 2q36 - q38 - q40 - q42

HOMFLY-PT Polynomial:

- 3a-12 - 4a-12z2 - a-12z4 + 2a-10 + 4a-10z2 + 4a-10z4 + a-10z6 + 2a-8 + 10a-8z2 + 9a-8z4 + 2a-8z6 + 3a-6z2 + 4a-6z4 + a-6z6

Kauffman Polynomial:

4a-17z - 4a-17z3 + a-17z5 - 2a-16z4 + a-16z6 - a-15z3 - a-15z5 + a-15z7 - 6a-14z2 + 5a-14z4 - 2a-14z6 + a-14z8 + a-13z - 5a-13z3 + 7a-13z5 - 3a-13z7 + a-13z9 - 3a-12 + 15a-12z2 - 20a-12z4 + 15a-12z6 - 5a-12z8 + a-12z10 + 5a-11z - 15a-11z3 + 23a-11z5 - 13a-11z7 + 3a-11z9 - 2a-10 + 6a-10z2 - 5a-10z4 + 4a-10z6 - 3a-10z8 + a-10z10 - 3a-9z3 + 7a-9z5 - 7a-9z7 + 2a-9z9 + 2a-8 - 12a-8z2 + 18a-8z4 - 13a-8z6 + 3a-8z8 + 4a-7z3 - 7a-7z5 + 2a-7z7 + 3a-6z2 - 4a-6z4 + a-6z6

V2 and V3, the type 2 and 3 Vassiliev invariants:

{13, 45}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=6 is the signature of 11365. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 r = 7 r = 8 r = 9 r = 10 r = 11 j = 29                       1 j = 27                         j = 25                   3 1   j = 23                 2       j = 21               4 3       j = 19             4 2         j = 17           4 4           j = 15         3 4             j = 13       2 4               j = 11     2 3                 j = 9     2                   j = 7 1 2                     j = 5 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Show[DrawMorseLink[Knot[11, Alternating, 365]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, Alternating, 365]]
Out[3]=	PD[X[10, 2, 11, 1], X[14, 4, 15, 3], X[16, 6, 17, 5], X[18, 8, 19, 7], > X[20, 10, 21, 9], X[22, 12, 1, 11], X[2, 14, 3, 13], X[4, 16, 5, 15], > X[8, 18, 9, 17], X[6, 20, 7, 19], X[12, 22, 13, 21]]
In[4]:=	GaussCode[Knot[11, Alternating, 365]]
Out[4]=	GaussCode[1, -7, 2, -8, 3, -10, 4, -9, 5, -1, 6, -11, 7, -2, 8, -3, 9, -4, 10, > -5, 11, -6]
In[5]:=	DTCode[Knot[11, Alternating, 365]]
Out[5]=	DTCode[10, 14, 16, 18, 20, 22, 2, 4, 8, 6, 12]
In[6]:=	alex = Alexander[Knot[11, Alternating, 365]][t]
Out[6]=	4 8 9 2 3 -9 + -- - -- + - + 9 t - 8 t + 4 t 3 2 t t t
In[7]:=	Conway[Knot[11, Alternating, 365]][z]
Out[7]=	2 4 6 1 + 13 z + 16 z + 4 z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[11, Alternating, 365]}
In[9]:=	{KnotDet[Knot[11, Alternating, 365]], KnotSignature[Knot[11, Alternating, 365]]}
Out[9]=	{51, 6}
In[10]:=	J=Jones[Knot[11, Alternating, 365]][q]
Out[10]=	3 4 5 6 7 8 9 10 11 12 13 14 q - 2 q + 4 q - 5 q + 7 q - 8 q + 8 q - 6 q + 5 q - 3 q + q - q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, Alternating, 365]}
In[12]:=	A2Invariant[Knot[11, Alternating, 365]][q]
Out[12]=	10 12 14 18 20 22 24 28 30 36 38 40 q - q + q + q + q - q + 2 q + 2 q + 2 q - 2 q - q - q - 42 > q
In[13]:=	HOMFLYPT[Knot[11, Alternating, 365]][a, z]
Out[13]=	2 2 2 2 4 4 4 4 6 -3 2 2 4 z 4 z 10 z 3 z z 4 z 9 z 4 z z --- + --- + -- - ---- + ---- + ----- + ---- - --- + ---- + ---- + ---- + --- + 12 10 8 12 10 8 6 12 10 8 6 10 a a a a a a a a a a a a 6 6 2 z z > ---- + -- 8 6 a a
In[14]:=	Kauffman[Knot[11, Alternating, 365]][a, z]
Out[14]=	2 2 2 2 2 3 -3 2 2 4 z z 5 z 6 z 15 z 6 z 12 z 3 z 4 z --- - --- + -- + --- + --- + --- - ---- + ----- + ---- - ----- + ---- - ---- - 12 10 8 17 13 11 14 12 10 8 6 17 a a a a a a a a a a a a 3 3 3 3 3 4 4 4 4 4 z 5 z 15 z 3 z 4 z 2 z 5 z 20 z 5 z 18 z > --- - ---- - ----- - ---- + ---- - ---- + ---- - ----- - ---- + ----- - 15 13 11 9 7 16 14 12 10 8 a a a a a a a a a a 4 5 5 5 5 5 5 6 6 6 6 4 z z z 7 z 23 z 7 z 7 z z 2 z 15 z 4 z > ---- + --- - --- + ---- + ----- + ---- - ---- + --- - ---- + ----- + ---- - 6 17 15 13 11 9 7 16 14 12 10 a a a a a a a a a a a 6 6 7 7 7 7 7 8 8 8 8 13 z z z 3 z 13 z 7 z 2 z z 5 z 3 z 3 z > ----- + -- + --- - ---- - ----- - ---- + ---- + --- - ---- - ---- + ---- + 8 6 15 13 11 9 7 14 12 10 8 a a a a a a a a a a a 9 9 9 10 10 z 3 z 2 z z z > --- + ---- + ---- + --- + --- 13 11 9 12 10 a a a a a
In[15]:=	{Vassiliev[2][Knot[11, Alternating, 365]], Vassiliev[3][Knot[11, Alternating, 365]]}
Out[15]=	{13, 45}
In[16]:=	Kh[Knot[11, Alternating, 365]][q, t]
Out[16]=	5 7 7 9 2 11 2 11 3 13 3 13 4 q + q + 2 q t + 2 q t + 2 q t + 3 q t + 2 q t + 4 q t + 15 4 15 5 17 5 17 6 19 6 19 7 > 3 q t + 4 q t + 4 q t + 4 q t + 4 q t + 2 q t + 21 7 21 8 23 8 25 9 25 10 29 11 > 4 q t + 3 q t + 2 q t + 3 q t + q t + q t
