This page is passe. Go here instead!    The Knot K11a354 Visit K11a354's page at Knotilus! Acknowledgement

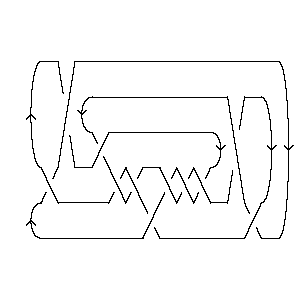

DrawMorseLink

PD Presentation:

X8291 X12,4,13,3 X16,6,17,5 X20,8,21,7 X2,10,3,9 X18,12,19,11 X22,14,1,13 X6,16,7,15 X4,18,5,17 X10,20,11,19 X14,22,15,21

Gauss Code:

{1, -5, 2, -9, 3, -8, 4, -1, 5, -10, 6, -2, 7, -11, 8, -3, 9, -6, 10, -4, 11, -7}

DT (Dowker-Thistlethwaite) Code:

8 12 16 20 2 18 22 6 4 10 14

Alexander Polynomial:

9t-2 - 26t-1 + 35 - 26t + 9t2

Conway Polynomial:

1 + 10z2 + 9z4

Other knots with the same Alexander/Conway Polynomial:

{...}

Determinant and Signature:

{105, 4}

Jones Polynomial:

q2 - 3q3 + 7q4 - 11q5 + 15q6 - 16q7 + 17q8 - 14q9 + 10q10 - 7q11 + 3q12 - q13

Other knots (up to mirrors) with the same Jones Polynomial:

{...}

A2 (sl(3)) Invariant:

q6 - 2q8 + 2q10 + q12 - 3q14 + 3q16 - q18 + q20 + 4q22 + q24 + 4q26 - 3q28 - 2q30 - 4q34 + q36 + q38 - q40

HOMFLY-PT Polynomial:

- a-12z2 - 4a-10 - 2a-10z2 + a-10z4 + 5a-8 + 8a-8z2 + 4a-8z4 + 4a-6z2 + 3a-6z4 + a-4z2 + a-4z4

Kauffman Polynomial:

- 2a-15z + 5a-15z3 - 4a-15z5 + a-15z7 - 3a-14z2 + 11a-14z4 - 11a-14z6 + 3a-14z8 + 4a-13z - 5a-13z3 + 11a-13z5 - 13a-13z7 + 4a-13z9 - 5a-12z2 + 20a-12z4 - 19a-12z6 + a-12z8 + 2a-12z10 + 4a-11z - 15a-11z3 + 30a-11z5 - 31a-11z7 + 10a-11z9 + 4a-10 - 25a-10z2 + 42a-10z4 - 34a-10z6 + 7a-10z8 + 2a-10z10 - 2a-9z + 3a-9z3 + a-9z5 - 9a-9z7 + 6a-9z9 + 5a-8 - 18a-8z2 + 25a-8z4 - 20a-8z6 + 9a-8z8 + 6a-7z3 - 11a-7z5 + 8a-7z7 + 4a-6z2 - 7a-6z4 + 6a-6z6 - 2a-5z3 + 3a-5z5 - a-4z2 + a-4z4

V2 and V3, the type 2 and 3 Vassiliev invariants:

{10, 30}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=4 is the signature of 11354. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 r = 7 r = 8 r = 9 r = 10 r = 11 j = 27                       1 j = 25                     2   j = 23                   5 1   j = 21                 5 2     j = 19               9 5       j = 17             8 5         j = 15           8 9           j = 13         7 8             j = 11       4 8               j = 9     3 7                 j = 7     4                   j = 5 1 3                     j = 3 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Show[DrawMorseLink[Knot[11, Alternating, 354]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, Alternating, 354]]
Out[3]=	PD[X[8, 2, 9, 1], X[12, 4, 13, 3], X[16, 6, 17, 5], X[20, 8, 21, 7], > X[2, 10, 3, 9], X[18, 12, 19, 11], X[22, 14, 1, 13], X[6, 16, 7, 15], > X[4, 18, 5, 17], X[10, 20, 11, 19], X[14, 22, 15, 21]]
In[4]:=	GaussCode[Knot[11, Alternating, 354]]
Out[4]=	GaussCode[1, -5, 2, -9, 3, -8, 4, -1, 5, -10, 6, -2, 7, -11, 8, -3, 9, -6, 10, > -4, 11, -7]
In[5]:=	DTCode[Knot[11, Alternating, 354]]
Out[5]=	DTCode[8, 12, 16, 20, 2, 18, 22, 6, 4, 10, 14]
In[6]:=	alex = Alexander[Knot[11, Alternating, 354]][t]
Out[6]=	9 26 2 35 + -- - -- - 26 t + 9 t 2 t t
In[7]:=	Conway[Knot[11, Alternating, 354]][z]
Out[7]=	2 4 1 + 10 z + 9 z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[11, Alternating, 354]}
In[9]:=	{KnotDet[Knot[11, Alternating, 354]], KnotSignature[Knot[11, Alternating, 354]]}
Out[9]=	{105, 4}
In[10]:=	J=Jones[Knot[11, Alternating, 354]][q]
Out[10]=	2 3 4 5 6 7 8 9 10 11 q - 3 q + 7 q - 11 q + 15 q - 16 q + 17 q - 14 q + 10 q - 7 q + 12 13 > 3 q - q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, Alternating, 354]}
In[12]:=	A2Invariant[Knot[11, Alternating, 354]][q]
Out[12]=	6 8 10 12 14 16 18 20 22 24 26 q - 2 q + 2 q + q - 3 q + 3 q - q + q + 4 q + q + 4 q - 28 30 34 36 38 40 > 3 q - 2 q - 4 q + q + q - q
In[13]:=	HOMFLYPT[Knot[11, Alternating, 354]][a, z]
Out[13]=	2 2 2 2 2 4 4 4 4 -4 5 z 2 z 8 z 4 z z z 4 z 3 z z --- + -- - --- - ---- + ---- + ---- + -- + --- + ---- + ---- + -- 10 8 12 10 8 6 4 10 8 6 4 a a a a a a a a a a a
In[14]:=	Kauffman[Knot[11, Alternating, 354]][a, z]
Out[14]=	2 2 2 2 2 2 4 5 2 z 4 z 4 z 2 z 3 z 5 z 25 z 18 z 4 z z --- + -- - --- + --- + --- - --- - ---- - ---- - ----- - ----- + ---- - -- + 10 8 15 13 11 9 14 12 10 8 6 4 a a a a a a a a a a a a 3 3 3 3 3 3 4 4 4 4 5 z 5 z 15 z 3 z 6 z 2 z 11 z 20 z 42 z 25 z > ---- - ---- - ----- + ---- + ---- - ---- + ----- + ----- + ----- + ----- - 15 13 11 9 7 5 14 12 10 8 a a a a a a a a a a 4 4 5 5 5 5 5 5 6 6 7 z z 4 z 11 z 30 z z 11 z 3 z 11 z 19 z > ---- + -- - ---- + ----- + ----- + -- - ----- + ---- - ----- - ----- - 6 4 15 13 11 9 7 5 14 12 a a a a a a a a a a 6 6 6 7 7 7 7 7 8 8 34 z 20 z 6 z z 13 z 31 z 9 z 8 z 3 z z > ----- - ----- + ---- + --- - ----- - ----- - ---- + ---- + ---- + --- + 10 8 6 15 13 11 9 7 14 12 a a a a a a a a a a 8 8 9 9 9 10 10 7 z 9 z 4 z 10 z 6 z 2 z 2 z > ---- + ---- + ---- + ----- + ---- + ----- + ----- 10 8 13 11 9 12 10 a a a a a a a
In[15]:=	{Vassiliev[2][Knot[11, Alternating, 354]], Vassiliev[3][Knot[11, Alternating, 354]]}
Out[15]=	{10, 30}
In[16]:=	Kh[Knot[11, Alternating, 354]][q, t]
Out[16]=	3 5 5 7 2 9 2 9 3 11 3 11 4 q + q + 3 q t + 4 q t + 3 q t + 7 q t + 4 q t + 8 q t + 13 4 13 5 15 5 15 6 17 6 17 7 > 7 q t + 8 q t + 8 q t + 9 q t + 8 q t + 5 q t + 19 7 19 8 21 8 21 9 23 9 23 10 > 9 q t + 5 q t + 5 q t + 2 q t + 5 q t + q t + 25 10 27 11 > 2 q t + q t
