This page is passe. Go here instead!    The Knot K11a135 Visit K11a135's page at Knotilus! Acknowledgement

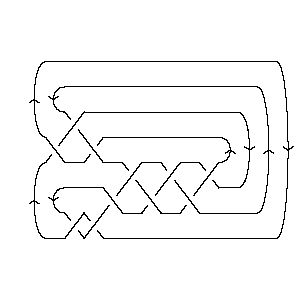

DrawMorseLink

PD Presentation:

X4251 X10,3,11,4 X16,6,17,5 X14,7,15,8 X12,10,13,9 X2,11,3,12 X18,14,19,13 X20,15,21,16 X22,18,1,17 X8,20,9,19 X6,21,7,22

Gauss Code:

{1, -6, 2, -1, 3, -11, 4, -10, 5, -2, 6, -5, 7, -4, 8, -3, 9, -7, 10, -8, 11, -9}

DT (Dowker-Thistlethwaite) Code:

4 10 16 14 12 2 18 20 22 8 6

Alexander Polynomial:

- 2t-3 + 13t-2 - 36t-1 + 51 - 36t + 13t2 - 2t3

Conway Polynomial:

1 - 2z2 + z4 - 2z6

Other knots with the same Alexander/Conway Polynomial:

{...}

Determinant and Signature:

{153, 0}

Jones Polynomial:

- q-5 + 4q-4 - 8q-3 + 15q-2 - 21q-1 + 24 - 25q + 22q2 - 16q3 + 11q4 - 5q5 + q6

Other knots (up to mirrors) with the same Jones Polynomial:

{...}

A2 (sl(3)) Invariant:

- q-16 + q-14 + 2q-12 - 3q-10 + 4q-8 + 2q-6 - 4q-4 + 3q-2 - 5 + q2 - q6 + 6q8 - 4q10 + 2q12 + 2q14 - 3q16 + q18

HOMFLY-PT Polynomial:

a-4z4 + 2a-2 - a-2z4 - a-2z6 - 3 - 3z2 - z4 - z6 + 2a2 + 2a2z2 + 2a2z4 - a4z2

Kauffman Polynomial:

- a-6z4 + a-6z6 + 2a-5z3 - 9a-5z5 + 5a-5z7 + 12a-4z4 - 23a-4z6 + 10a-4z8 - a-3z + 3a-3z3 + a-3z5 - 15a-3z7 + 9a-3z9 - 2a-2 + 3a-2z2 + 24a-2z4 - 41a-2z6 + 13a-2z8 + 3a-2z10 - 5a-1z + 7a-1z3 + 10a-1z5 - 29a-1z7 + 16a-1z9 - 3 + 9z2 + 9z4 - 26z6 + 11z8 + 3z10 - 5az + 11az3 - 10az5 - 2az7 + 7az9 - 2a2 + 9a2z2 - 8a2z4 - 5a2z6 + 8a2z8 - a3z + 4a3z3 - 9a3z5 + 7a3z7 + 3a4z2 - 6a4z4 + 4a4z6 - a5z3 + a5z5

V2 and V3, the type 2 and 3 Vassiliev invariants:

{-2, 0}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=0 is the signature of 11135. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 j = 13                       1 j = 11                     4   j = 9                   7 1   j = 7                 9 4     j = 5               13 7       j = 3             12 9         j = 1           12 13           j = -1         10 13             j = -3       5 11               j = -5     3 10                 j = -7   1 5                   j = -9   3                     j = -11 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Show[DrawMorseLink[Knot[11, Alternating, 135]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, Alternating, 135]]
Out[3]=	PD[X[4, 2, 5, 1], X[10, 3, 11, 4], X[16, 6, 17, 5], X[14, 7, 15, 8], > X[12, 10, 13, 9], X[2, 11, 3, 12], X[18, 14, 19, 13], X[20, 15, 21, 16], > X[22, 18, 1, 17], X[8, 20, 9, 19], X[6, 21, 7, 22]]
In[4]:=	GaussCode[Knot[11, Alternating, 135]]
Out[4]=	GaussCode[1, -6, 2, -1, 3, -11, 4, -10, 5, -2, 6, -5, 7, -4, 8, -3, 9, -7, 10, > -8, 11, -9]
In[5]:=	DTCode[Knot[11, Alternating, 135]]
Out[5]=	DTCode[4, 10, 16, 14, 12, 2, 18, 20, 22, 8, 6]
In[6]:=	alex = Alexander[Knot[11, Alternating, 135]][t]
Out[6]=	2 13 36 2 3 51 - -- + -- - -- - 36 t + 13 t - 2 t 3 2 t t t
In[7]:=	Conway[Knot[11, Alternating, 135]][z]
Out[7]=	2 4 6 1 - 2 z + z - 2 z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[11, Alternating, 135]}
In[9]:=	{KnotDet[Knot[11, Alternating, 135]], KnotSignature[Knot[11, Alternating, 135]]}
Out[9]=	{153, 0}
In[10]:=	J=Jones[Knot[11, Alternating, 135]][q]
Out[10]=	-5 4 8 15 21 2 3 4 5 6 24 - q + -- - -- + -- - -- - 25 q + 22 q - 16 q + 11 q - 5 q + q 4 3 2 q q q q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, Alternating, 135]}
In[12]:=	A2Invariant[Knot[11, Alternating, 135]][q]
Out[12]=	-16 -14 2 3 4 2 4 3 2 6 8 10 -5 - q + q + --- - --- + -- + -- - -- + -- + q - q + 6 q - 4 q + 12 10 8 6 4 2 q q q q q q 12 14 16 18 > 2 q + 2 q - 3 q + q
In[13]:=	HOMFLYPT[Knot[11, Alternating, 135]][a, z]
Out[13]=	4 4 6 2 2 2 2 2 4 2 4 z z 2 4 6 z -3 + -- + 2 a - 3 z + 2 a z - a z - z + -- - -- + 2 a z - z - -- 2 4 2 2 a a a a
In[14]:=	Kauffman[Knot[11, Alternating, 135]][a, z]
Out[14]=	2 2 2 z 5 z 3 2 3 z 2 2 4 2 -3 - -- - 2 a - -- - --- - 5 a z - a z + 9 z + ---- + 9 a z + 3 a z + 2 3 a 2 a a a 3 3 3 4 4 2 z 3 z 7 z 3 3 3 5 3 4 z 12 z > ---- + ---- + ---- + 11 a z + 4 a z - a z + 9 z - -- + ----- + 5 3 a 6 4 a a a a 4 5 5 5 24 z 2 4 4 4 9 z z 10 z 5 3 5 5 5 > ----- - 8 a z - 6 a z - ---- + -- + ----- - 10 a z - 9 a z + a z - 2 5 3 a a a a 6 6 6 7 7 7 6 z 23 z 41 z 2 6 4 6 5 z 15 z 29 z > 26 z + -- - ----- - ----- - 5 a z + 4 a z + ---- - ----- - ----- - 6 4 2 5 3 a a a a a a 8 8 9 9 7 3 7 8 10 z 13 z 2 8 9 z 16 z > 2 a z + 7 a z + 11 z + ----- + ----- + 8 a z + ---- + ----- + 4 2 3 a a a a 10 9 10 3 z > 7 a z + 3 z + ----- 2 a
In[15]:=	{Vassiliev[2][Knot[11, Alternating, 135]], Vassiliev[3][Knot[11, Alternating, 135]]}
Out[15]=	{-2, 0}
In[16]:=	Kh[Knot[11, Alternating, 135]][q, t]
Out[16]=	13 1 3 1 5 3 10 5 11 -- + 12 q + ------ + ----- + ----- + ----- + ----- + ----- + ----- + ---- + q 11 5 9 4 7 4 7 3 5 3 5 2 3 2 3 q t q t q t q t q t q t q t q t 10 3 3 2 5 2 5 3 7 3 7 4 > --- + 13 q t + 12 q t + 9 q t + 13 q t + 7 q t + 9 q t + 4 q t + q t 9 4 9 5 11 5 13 6 > 7 q t + q t + 4 q t + q t
