This page is passe. Go here instead!    The Knot K11a1 Visit K11a1's page at Knotilus! Acknowledgement

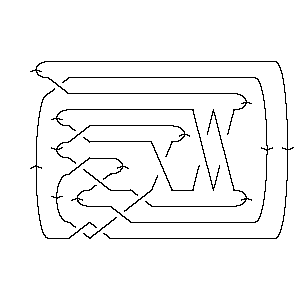

DrawMorseLink

PD Presentation:

X4251 X8394 X10,6,11,5 X14,7,15,8 X2,9,3,10 X16,12,17,11 X20,14,21,13 X6,15,7,16 X22,18,1,17 X12,20,13,19 X18,22,19,21

Gauss Code:

{1, -5, 2, -1, 3, -8, 4, -2, 5, -3, 6, -10, 7, -4, 8, -6, 9, -11, 10, -7, 11, -9}

DT (Dowker-Thistlethwaite) Code:

4 8 10 14 2 16 20 6 22 12 18

Alexander Polynomial:

2t-3 - 12t-2 + 30t-1 - 39 + 30t - 12t2 + 2t3

Conway Polynomial:

1 + 2z6

Other knots with the same Alexander/Conway Polynomial:

{K11a122, K11a149, ...}

Determinant and Signature:

{127, 2}

Jones Polynomial:

q-3 - 3q-2 + 7q-1 - 12 + 17q - 20q2 + 21q3 - 18q4 + 14q5 - 9q6 + 4q7 - q8

Other knots (up to mirrors) with the same Jones Polynomial:

{K11a149, ...}

A2 (sl(3)) Invariant:

q-10 - q-6 + 3q-4 - 2q-2 - 1 + 3q2 - 4q4 + 3q6 - q8 + q10 + 3q12 - 3q14 + 4q16 - 2q18 - 2q20 + 2q22 - q24

HOMFLY-PT Polynomial:

- a-6 - a-6z2 - a-6z4 + 2a-4 + 3a-4z2 + 2a-4z4 + a-4z6 + a-2z4 + a-2z6 - 1 - 3z2 - 2z4 + a2 + a2z2

Kauffman Polynomial:

- a-9z3 + a-9z5 + a-8z2 - 5a-8z4 + 4a-8z6 - 2a-7z + 7a-7z3 - 13a-7z5 + 8a-7z7 + a-6 - 4a-6z2 + 9a-6z4 - 14a-6z6 + 9a-6z8 - 4a-5z + 16a-5z3 - 20a-5z5 + 4a-5z7 + 5a-5z9 + 2a-4 - 10a-4z2 + 28a-4z4 - 36a-4z6 + 16a-4z8 + a-4z10 - 4a-3z + 16a-3z3 - 16a-3z5 - 4a-3z7 + 8a-3z9 - 3a-2z2 + 15a-2z4 - 25a-2z6 + 11a-2z8 + a-2z10 - 4a-1z + 15a-1z3 - 18a-1z5 + 3a-1z7 + 3a-1z9 - 1 + 5z2 - 2z4 - 6z6 + 4z8 - 2az + 7az3 - 8az5 + 3az7 - a2 + 3a2z2 - 3a2z4 + a2z6

V2 and V3, the type 2 and 3 Vassiliev invariants:

{0, 2}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=2 is the signature of 111. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 r = 7 j = 17                       1 j = 15                     3   j = 13                   6 1   j = 11                 8 3     j = 9               10 6       j = 7             11 8         j = 5           9 10           j = 3         8 11             j = 1       5 10               j = -1     2 7                 j = -3   1 5                   j = -5   2                     j = -7 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Show[DrawMorseLink[Knot[11, Alternating, 1]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, Alternating, 1]]
Out[3]=	PD[X[4, 2, 5, 1], X[8, 3, 9, 4], X[10, 6, 11, 5], X[14, 7, 15, 8], > X[2, 9, 3, 10], X[16, 12, 17, 11], X[20, 14, 21, 13], X[6, 15, 7, 16], > X[22, 18, 1, 17], X[12, 20, 13, 19], X[18, 22, 19, 21]]
In[4]:=	GaussCode[Knot[11, Alternating, 1]]
Out[4]=	GaussCode[1, -5, 2, -1, 3, -8, 4, -2, 5, -3, 6, -10, 7, -4, 8, -6, 9, -11, 10, > -7, 11, -9]
In[5]:=	DTCode[Knot[11, Alternating, 1]]
Out[5]=	DTCode[4, 8, 10, 14, 2, 16, 20, 6, 22, 12, 18]
In[6]:=	alex = Alexander[Knot[11, Alternating, 1]][t]
Out[6]=	2 12 30 2 3 -39 + -- - -- + -- + 30 t - 12 t + 2 t 3 2 t t t
In[7]:=	Conway[Knot[11, Alternating, 1]][z]
Out[7]=	6 1 + 2 z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[11, Alternating, 1], Knot[11, Alternating, 122], > Knot[11, Alternating, 149]}
In[9]:=	{KnotDet[Knot[11, Alternating, 1]], KnotSignature[Knot[11, Alternating, 1]]}
Out[9]=	{127, 2}
In[10]:=	J=Jones[Knot[11, Alternating, 1]][q]
Out[10]=	-3 3 7 2 3 4 5 6 7 8 -12 + q - -- + - + 17 q - 20 q + 21 q - 18 q + 14 q - 9 q + 4 q - q 2 q q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, Alternating, 1], Knot[11, Alternating, 149]}
In[12]:=	A2Invariant[Knot[11, Alternating, 1]][q]
Out[12]=	-10 -6 3 2 2 4 6 8 10 12 14 -1 + q - q + -- - -- + 3 q - 4 q + 3 q - q + q + 3 q - 3 q + 4 2 q q 16 18 20 22 24 > 4 q - 2 q - 2 q + 2 q - q
In[13]:=	HOMFLYPT[Knot[11, Alternating, 1]][a, z]
Out[13]=	2 2 4 4 4 6 6 -6 2 2 2 z 3 z 2 2 4 z 2 z z z z -1 - a + -- + a - 3 z - -- + ---- + a z - 2 z - -- + ---- + -- + -- + -- 4 6 4 6 4 2 4 2 a a a a a a a a
In[14]:=	Kauffman[Knot[11, Alternating, 1]][a, z]
Out[14]=	2 2 2 -6 2 2 2 z 4 z 4 z 4 z 2 z 4 z 10 z -1 + a + -- - a - --- - --- - --- - --- - 2 a z + 5 z + -- - ---- - ----- - 4 7 5 3 a 8 6 4 a a a a a a a 2 3 3 3 3 3 4 3 z 2 2 z 7 z 16 z 16 z 15 z 3 4 5 z > ---- + 3 a z - -- + ---- + ----- + ----- + ----- + 7 a z - 2 z - ---- + 2 9 7 5 3 a 8 a a a a a a 4 4 4 5 5 5 5 5 9 z 28 z 15 z 2 4 z 13 z 20 z 16 z 18 z > ---- + ----- + ----- - 3 a z + -- - ----- - ----- - ----- - ----- - 6 4 2 9 7 5 3 a a a a a a a a 6 6 6 6 7 7 7 5 6 4 z 14 z 36 z 25 z 2 6 8 z 4 z 4 z > 8 a z - 6 z + ---- - ----- - ----- - ----- + a z + ---- + ---- - ---- + 8 6 4 2 7 5 3 a a a a a a a 7 8 8 8 9 9 9 10 10 3 z 7 8 9 z 16 z 11 z 5 z 8 z 3 z z z > ---- + 3 a z + 4 z + ---- + ----- + ----- + ---- + ---- + ---- + --- + --- a 6 4 2 5 3 a 4 2 a a a a a a a
In[15]:=	{Vassiliev[2][Knot[11, Alternating, 1]], Vassiliev[3][Knot[11, Alternating, 1]]}
Out[15]=	{0, 2}
In[16]:=	Kh[Knot[11, Alternating, 1]][q, t]
Out[16]=	3 1 2 1 5 2 7 5 q 3 10 q + 8 q + ----- + ----- + ----- + ----- + ---- + --- + --- + 11 q t + 7 4 5 3 3 3 3 2 2 q t t q t q t q t q t q t 5 5 2 7 2 7 3 9 3 9 4 11 4 > 9 q t + 10 q t + 11 q t + 8 q t + 10 q t + 6 q t + 8 q t + 11 5 13 5 13 6 15 6 17 7 > 3 q t + 6 q t + q t + 3 q t + q t
