This page is passe. Go here instead!    The Knot K11n89 Visit K11n89's page at Knotilus! Acknowledgement

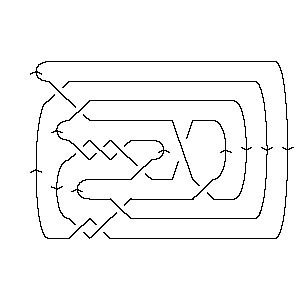

DrawMorseLink

PD Presentation:

X4251 X10,3,11,4 X12,6,13,5 X7,16,8,17 X9,18,10,19 X2,11,3,12 X20,13,21,14 X15,6,16,7 X17,8,18,9 X22,19,1,20 X14,21,15,22

Gauss Code:

{1, -6, 2, -1, 3, 8, -4, 9, -5, -2, 6, -3, 7, -11, -8, 4, -9, 5, 10, -7, 11, -10}

DT (Dowker-Thistlethwaite) Code:

4 10 12 -16 -18 2 20 -6 -8 22 14

Alexander Polynomial:

- t-3 + 7t-2 - 14t-1 + 17 - 14t + 7t2 - t3

Conway Polynomial:

1 + 5z2 + z4 - z6

Other knots with the same Alexander/Conway Polynomial:

{...}

Determinant and Signature:

{61, -4}

Jones Polynomial:

- q-11 + 3q-10 - 6q-9 + 8q-8 - 10q-7 + 11q-6 - 9q-5 + 7q-4 - 4q-3 + 2q-2

Other knots (up to mirrors) with the same Jones Polynomial:

{...}

A2 (sl(3)) Invariant:

- q-34 + q-30 - 2q-28 + q-26 - q-24 - q-22 + 2q-20 - q-18 + 3q-16 - q-14 + 2q-10 - q-8 + 2q-6

HOMFLY-PT Polynomial:

2a4 + 5a4z2 + 2a4z4 - a6 - 3a6z2 - 3a6z4 - a6z6 + a8 + 4a8z2 + 2a8z4 - a10 - a10z2

Kauffman Polynomial:

2a4 - 6a4z2 + 3a4z4 - 3a5z3 + a5z5 + a5z7 + a6 - 6a6z2 + 8a6z4 - 4a6z6 + 2a6z8 + 2a7z - 2a7z3 + a7z7 + a7z9 + a8 - 4a8z2 + 11a8z4 - 10a8z6 + 5a8z8 + 5a9z3 - 9a9z5 + 4a9z7 + a9z9 + a10 - 2a10z2 - 3a10z6 + 3a10z8 - a11z + 2a11z3 - 7a11z5 + 4a11z7 + 2a12z2 - 6a12z4 + 3a12z6 + a13z - 2a13z3 + a13z5

V2 and V3, the type 2 and 3 Vassiliev invariants:

{5, -12}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=-4 is the signature of 1189. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = -9 r = -8 r = -7 r = -6 r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 j = -3                   2 j = -5                 3 1 j = -7               4 1   j = -9             5 3     j = -11           6 4       j = -13         4 5         j = -15       4 6           j = -17     2 4             j = -19   1 4               j = -21   2                 j = -23 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Show[DrawMorseLink[Knot[11, NonAlternating, 89]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, NonAlternating, 89]]
Out[3]=	PD[X[4, 2, 5, 1], X[10, 3, 11, 4], X[12, 6, 13, 5], X[7, 16, 8, 17], > X[9, 18, 10, 19], X[2, 11, 3, 12], X[20, 13, 21, 14], X[15, 6, 16, 7], > X[17, 8, 18, 9], X[22, 19, 1, 20], X[14, 21, 15, 22]]
In[4]:=	GaussCode[Knot[11, NonAlternating, 89]]
Out[4]=	GaussCode[1, -6, 2, -1, 3, 8, -4, 9, -5, -2, 6, -3, 7, -11, -8, 4, -9, 5, 10, > -7, 11, -10]
In[5]:=	DTCode[Knot[11, NonAlternating, 89]]
Out[5]=	DTCode[4, 10, 12, -16, -18, 2, 20, -6, -8, 22, 14]
In[6]:=	alex = Alexander[Knot[11, NonAlternating, 89]][t]
Out[6]=	-3 7 14 2 3 17 - t + -- - -- - 14 t + 7 t - t 2 t t
In[7]:=	Conway[Knot[11, NonAlternating, 89]][z]
Out[7]=	2 4 6 1 + 5 z + z - z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[11, NonAlternating, 89]}
In[9]:=	{KnotDet[Knot[11, NonAlternating, 89]], KnotSignature[Knot[11, NonAlternating, 89]]}
Out[9]=	{61, -4}
In[10]:=	J=Jones[Knot[11, NonAlternating, 89]][q]
Out[10]=	-11 3 6 8 10 11 9 7 4 2 -q + --- - -- + -- - -- + -- - -- + -- - -- + -- 10 9 8 7 6 5 4 3 2 q q q q q q q q q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, NonAlternating, 89]}
In[12]:=	A2Invariant[Knot[11, NonAlternating, 89]][q]
Out[12]=	-34 -30 2 -26 -24 -22 2 -18 3 -14 2 -8 -q + q - --- + q - q - q + --- - q + --- - q + --- - q + 28 20 16 10 q q q q 2 > -- 6 q
In[13]:=	HOMFLYPT[Knot[11, NonAlternating, 89]][a, z]
Out[13]=	4 6 8 10 4 2 6 2 8 2 10 2 4 4 2 a - a + a - a + 5 a z - 3 a z + 4 a z - a z + 2 a z - 6 4 8 4 6 6 > 3 a z + 2 a z - a z
In[14]:=	Kauffman[Knot[11, NonAlternating, 89]][a, z]
Out[14]=	4 6 8 10 7 11 13 4 2 6 2 8 2 2 a + a + a + a + 2 a z - a z + a z - 6 a z - 6 a z - 4 a z - 10 2 12 2 5 3 7 3 9 3 11 3 13 3 > 2 a z + 2 a z - 3 a z - 2 a z + 5 a z + 2 a z - 2 a z + 4 4 6 4 8 4 12 4 5 5 9 5 11 5 > 3 a z + 8 a z + 11 a z - 6 a z + a z - 9 a z - 7 a z + 13 5 6 6 8 6 10 6 12 6 5 7 7 7 > a z - 4 a z - 10 a z - 3 a z + 3 a z + a z + a z + 9 7 11 7 6 8 8 8 10 8 7 9 9 9 > 4 a z + 4 a z + 2 a z + 5 a z + 3 a z + a z + a z
In[15]:=	{Vassiliev[2][Knot[11, NonAlternating, 89]], Vassiliev[3][Knot[11, NonAlternating, 89]]}
Out[15]=	{5, -12}
In[16]:=	Kh[Knot[11, NonAlternating, 89]][q, t]
Out[16]=	-5 2 1 2 1 4 2 4 4 q + -- + ------ + ------ + ------ + ------ + ------ + ------ + ------ + 3 23 9 21 8 19 8 19 7 17 7 17 6 15 6 q q t q t q t q t q t q t q t 6 4 5 6 4 5 3 4 1 > ------ + ------ + ------ + ------ + ------ + ----- + ----- + ----- + ---- + 15 5 13 5 13 4 11 4 11 3 9 3 9 2 7 2 7 q t q t q t q t q t q t q t q t q t 3 > ---- 5 q t
