This page is passe. Go here instead!    The Knot K11a30 Visit K11a30's page at Knotilus! Acknowledgement

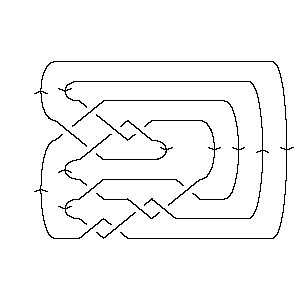

DrawMorseLink

PD Presentation:

X4251 X8394 X12,6,13,5 X18,8,19,7 X2,9,3,10 X16,12,17,11 X20,13,21,14 X6,16,7,15 X10,18,11,17 X22,19,1,20 X14,21,15,22

Gauss Code:

{1, -5, 2, -1, 3, -8, 4, -2, 5, -9, 6, -3, 7, -11, 8, -6, 9, -4, 10, -7, 11, -10}

DT (Dowker-Thistlethwaite) Code:

4 8 12 18 2 16 20 6 10 22 14

Alexander Polynomial:

- 2t-3 + 13t-2 - 35t-1 + 49 - 35t + 13t2 - 2t3

Conway Polynomial:

1 - z2 + z4 - 2z6

Other knots with the same Alexander/Conway Polynomial:

{K11a272, ...}

Determinant and Signature:

{149, 0}

Jones Polynomial:

- q-5 + 4q-4 - 9q-3 + 16q-2 - 21q-1 + 24 - 24q + 21q2 - 15q3 + 9q4 - 4q5 + q6

Other knots (up to mirrors) with the same Jones Polynomial:

{K11a189, K11a272, ...}

A2 (sl(3)) Invariant:

- q-16 + q-14 + 2q-12 - 4q-10 + 3q-8 + q-6 - 3q-4 + 5q-2 - 3 + 3q2 - q4 - 2q6 + 4q8 - 5q10 + 2q12 + 2q14 - 2q16 + q18

HOMFLY-PT Polynomial:

a-4 + a-4z2 + a-4z4 - 2a-2 - 4a-2z2 - 2a-2z4 - a-2z6 + 2 + 2z2 - z6 + a2z2 + 2a2z4 - a4z2

Kauffman Polynomial:

a-6z2 - 2a-6z4 + a-6z6 - a-5z + 6a-5z3 - 9a-5z5 + 4a-5z7 + a-4 - 3a-4z2 + 10a-4z4 - 15a-4z6 + 7a-4z8 - 2a-3z + 11a-3z3 - 12a-3z5 - 4a-3z7 + 6a-3z9 + 2a-2 - 13a-2z2 + 34a-2z4 - 42a-2z6 + 15a-2z8 + 2a-2z10 - 3a-1z + 11a-1z3 - 8a-1z5 - 15a-1z7 + 13a-1z9 + 2 - 12z2 + 33z4 - 43z6 + 18z8 + 2z10 - 3az + 13az3 - 17az5 + az7 + 7az9 - a2z2 + 6a2z4 - 13a2z6 + 10a2z8 - a3z + 6a3z3 - 11a3z5 + 8a3z7 + 2a4z2 - 5a4z4 + 4a4z6 - a5z3 + a5z5

V2 and V3, the type 2 and 3 Vassiliev invariants:

{-1, -1}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=0 is the signature of 1130. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 j = 13                       1 j = 11                     3   j = 9                   6 1   j = 7                 9 3     j = 5               12 6       j = 3             12 9         j = 1           12 12           j = -1         10 13             j = -3       6 11               j = -5     3 10                 j = -7   1 6                   j = -9   3                     j = -11 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Show[DrawMorseLink[Knot[11, Alternating, 30]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, Alternating, 30]]
Out[3]=	PD[X[4, 2, 5, 1], X[8, 3, 9, 4], X[12, 6, 13, 5], X[18, 8, 19, 7], > X[2, 9, 3, 10], X[16, 12, 17, 11], X[20, 13, 21, 14], X[6, 16, 7, 15], > X[10, 18, 11, 17], X[22, 19, 1, 20], X[14, 21, 15, 22]]
In[4]:=	GaussCode[Knot[11, Alternating, 30]]
Out[4]=	GaussCode[1, -5, 2, -1, 3, -8, 4, -2, 5, -9, 6, -3, 7, -11, 8, -6, 9, -4, 10, > -7, 11, -10]
In[5]:=	DTCode[Knot[11, Alternating, 30]]
Out[5]=	DTCode[4, 8, 12, 18, 2, 16, 20, 6, 10, 22, 14]
In[6]:=	alex = Alexander[Knot[11, Alternating, 30]][t]
Out[6]=	2 13 35 2 3 49 - -- + -- - -- - 35 t + 13 t - 2 t 3 2 t t t
In[7]:=	Conway[Knot[11, Alternating, 30]][z]
Out[7]=	2 4 6 1 - z + z - 2 z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[11, Alternating, 30], Knot[11, Alternating, 272]}
In[9]:=	{KnotDet[Knot[11, Alternating, 30]], KnotSignature[Knot[11, Alternating, 30]]}
Out[9]=	{149, 0}
In[10]:=	J=Jones[Knot[11, Alternating, 30]][q]
Out[10]=	-5 4 9 16 21 2 3 4 5 6 24 - q + -- - -- + -- - -- - 24 q + 21 q - 15 q + 9 q - 4 q + q 4 3 2 q q q q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, Alternating, 30], Knot[11, Alternating, 189], > Knot[11, Alternating, 272]}
In[12]:=	A2Invariant[Knot[11, Alternating, 30]][q]
Out[12]=	-16 -14 2 4 3 -6 3 5 2 4 6 8 -3 - q + q + --- - --- + -- + q - -- + -- + 3 q - q - 2 q + 4 q - 12 10 8 4 2 q q q q q 10 12 14 16 18 > 5 q + 2 q + 2 q - 2 q + q
In[13]:=	HOMFLYPT[Knot[11, Alternating, 30]][a, z]
Out[13]=	2 2 4 4 6 -4 2 2 z 4 z 2 2 4 2 z 2 z 2 4 6 z 2 + a - -- + 2 z + -- - ---- + a z - a z + -- - ---- + 2 a z - z - -- 2 4 2 4 2 2 a a a a a a
In[14]:=	Kauffman[Knot[11, Alternating, 30]][a, z]
Out[14]=	2 2 2 -4 2 z 2 z 3 z 3 2 z 3 z 13 z 2 + a + -- - -- - --- - --- - 3 a z - a z - 12 z + -- - ---- - ----- - 2 5 3 a 6 4 2 a a a a a a 3 3 3 2 2 4 2 6 z 11 z 11 z 3 3 3 5 3 > a z + 2 a z + ---- + ----- + ----- + 13 a z + 6 a z - a z + 5 3 a a a 4 4 4 5 5 5 4 2 z 10 z 34 z 2 4 4 4 9 z 12 z 8 z > 33 z - ---- + ----- + ----- + 6 a z - 5 a z - ---- - ----- - ---- - 6 4 2 5 3 a a a a a a 6 6 6 5 3 5 5 5 6 z 15 z 42 z 2 6 > 17 a z - 11 a z + a z - 43 z + -- - ----- - ----- - 13 a z + 6 4 2 a a a 7 7 7 8 8 4 6 4 z 4 z 15 z 7 3 7 8 7 z 15 z > 4 a z + ---- - ---- - ----- + a z + 8 a z + 18 z + ---- + ----- + 5 3 a 4 2 a a a a 9 9 10 2 8 6 z 13 z 9 10 2 z > 10 a z + ---- + ----- + 7 a z + 2 z + ----- 3 a 2 a a
In[15]:=	{Vassiliev[2][Knot[11, Alternating, 30]], Vassiliev[3][Knot[11, Alternating, 30]]}
Out[15]=	{-1, -1}
In[16]:=	Kh[Knot[11, Alternating, 30]][q, t]
Out[16]=	13 1 3 1 6 3 10 6 11 -- + 12 q + ------ + ----- + ----- + ----- + ----- + ----- + ----- + ---- + q 11 5 9 4 7 4 7 3 5 3 5 2 3 2 3 q t q t q t q t q t q t q t q t 10 3 3 2 5 2 5 3 7 3 7 4 > --- + 12 q t + 12 q t + 9 q t + 12 q t + 6 q t + 9 q t + 3 q t + q t 9 4 9 5 11 5 13 6 > 6 q t + q t + 3 q t + q t
