This page is passe. Go here instead!    The Knot K11a286 Visit K11a286's page at Knotilus! Acknowledgement

DrawMorseLink

PD Presentation:

X6271 X10,3,11,4 X16,6,17,5 X18,7,19,8 X14,10,15,9 X2,11,3,12 X20,14,21,13 X4,16,5,15 X22,17,1,18 X12,20,13,19 X8,21,9,22

Gauss Code:

{1, -6, 2, -8, 3, -1, 4, -11, 5, -2, 6, -10, 7, -5, 8, -3, 9, -4, 10, -7, 11, -9}

DT (Dowker-Thistlethwaite) Code:

6 10 16 18 14 2 20 4 22 12 8

Alexander Polynomial:

- t-4 + 6t-3 - 17t-2 + 31t-1 - 37 + 31t - 17t2 + 6t3 - t4

Conway Polynomial:

1 + z2 - z4 - 2z6 - z8

Other knots with the same Alexander/Conway Polynomial:

{K11a196, K11a216, ...}

Determinant and Signature:

{147, 2}

Jones Polynomial:

- q-4 + 4q-3 - 9q-2 + 15q-1 - 20 + 24q - 23q2 + 21q3 - 16q4 + 9q5 - 4q6 + q7

Other knots (up to mirrors) with the same Jones Polynomial:

{...}

A2 (sl(3)) Invariant:

- q-12 + q-10 - 2q-6 + 4q-4 - 3q-2 + 2 + 2q2 - 2q4 + 6q6 - 4q8 + 3q10 - 2q12 - 3q14 + 3q16 - 2q18 + q20

HOMFLY-PT Polynomial:

3a-4z2 + 3a-4z4 + a-4z6 - a-2 - 8a-2z2 - 10a-2z4 - 5a-2z6 - a-2z8 + 3 + 8z2 + 7z4 + 2z6 - a2 - 2a2z2 - a2z4

Kauffman Polynomial:

a-8z4 - a-7z3 + 4a-7z5 + a-6z2 - 6a-6z4 + 9a-6z6 - a-5z + 11a-5z3 - 21a-5z5 + 15a-5z7 - 6a-4z2 + 20a-4z4 - 31a-4z6 + 17a-4z8 - 4a-3z + 21a-3z3 - 21a-3z5 - 9a-3z7 + 11a-3z9 + a-2 - 21a-2z2 + 64a-2z4 - 72a-2z6 + 20a-2z8 + 3a-2z10 - 5a-1z + 11a-1z3 + 15a-1z5 - 41a-1z7 + 17a-1z9 + 3 - 20z2 + 51z4 - 45z6 + 7z8 + 3z10 - 3az + 5az3 + 8az5 - 16az7 + 6az9 + a2 - 6a2z2 + 14a2z4 - 13a2z6 + 4a2z8 - a3z + 3a3z3 - 3a3z5 + a3z7

V2 and V3, the type 2 and 3 Vassiliev invariants:

{1, 0}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=2 is the signature of 11286. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 j = 15                       1 j = 13                     3   j = 11                   6 1   j = 9                 10 3     j = 7               11 6       j = 5             12 10         j = 3           12 11           j = 1         9 13             j = -1       6 11               j = -3     3 9                 j = -5   1 6                   j = -7   3                     j = -9 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...

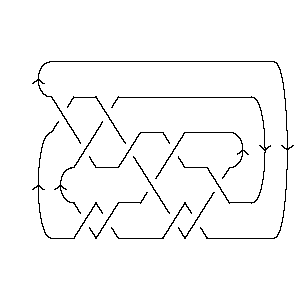

In[2]:=	Show[DrawMorseLink[Knot[11, Alternating, 286]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, Alternating, 286]]
Out[3]=	PD[X[6, 2, 7, 1], X[10, 3, 11, 4], X[16, 6, 17, 5], X[18, 7, 19, 8], > X[14, 10, 15, 9], X[2, 11, 3, 12], X[20, 14, 21, 13], X[4, 16, 5, 15], > X[22, 17, 1, 18], X[12, 20, 13, 19], X[8, 21, 9, 22]]
In[4]:=	GaussCode[Knot[11, Alternating, 286]]
Out[4]=	GaussCode[1, -6, 2, -8, 3, -1, 4, -11, 5, -2, 6, -10, 7, -5, 8, -3, 9, -4, 10, > -7, 11, -9]
In[5]:=	DTCode[Knot[11, Alternating, 286]]
Out[5]=	DTCode[6, 10, 16, 18, 14, 2, 20, 4, 22, 12, 8]
In[6]:=	alex = Alexander[Knot[11, Alternating, 286]][t]
Out[6]=	-4 6 17 31 2 3 4 -37 - t + -- - -- + -- + 31 t - 17 t + 6 t - t 3 2 t t t
In[7]:=	Conway[Knot[11, Alternating, 286]][z]
Out[7]=	2 4 6 8 1 + z - z - 2 z - z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[11, Alternating, 196], Knot[11, Alternating, 216], > Knot[11, Alternating, 286]}
In[9]:=	{KnotDet[Knot[11, Alternating, 286]], KnotSignature[Knot[11, Alternating, 286]]}
Out[9]=	{147, 2}
In[10]:=	J=Jones[Knot[11, Alternating, 286]][q]
Out[10]=	-4 4 9 15 2 3 4 5 6 7 -20 - q + -- - -- + -- + 24 q - 23 q + 21 q - 16 q + 9 q - 4 q + q 3 2 q q q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, Alternating, 286]}
In[12]:=	A2Invariant[Knot[11, Alternating, 286]][q]
Out[12]=	-12 -10 2 4 3 2 4 6 8 10 12 2 - q + q - -- + -- - -- + 2 q - 2 q + 6 q - 4 q + 3 q - 2 q - 6 4 2 q q q 14 16 18 20 > 3 q + 3 q - 2 q + q
In[13]:=	HOMFLYPT[Knot[11, Alternating, 286]][a, z]
Out[13]=	2 2 4 4 -2 2 2 3 z 8 z 2 2 4 3 z 10 z 2 4 3 - a - a + 8 z + ---- - ---- - 2 a z + 7 z + ---- - ----- - a z + 4 2 4 2 a a a a 6 6 8 6 z 5 z z > 2 z + -- - ---- - -- 4 2 2 a a a
In[14]:=	Kauffman[Knot[11, Alternating, 286]][a, z]
Out[14]=	2 2 2 -2 2 z 4 z 5 z 3 2 z 6 z 21 z 3 + a + a - -- - --- - --- - 3 a z - a z - 20 z + -- - ---- - ----- - 5 3 a 6 4 2 a a a a a 3 3 3 3 4 2 2 z 11 z 21 z 11 z 3 3 3 4 z > 6 a z - -- + ----- + ----- + ----- + 5 a z + 3 a z + 51 z + -- - 7 5 3 a 8 a a a a 4 4 4 5 5 5 5 6 z 20 z 64 z 2 4 4 z 21 z 21 z 15 z 5 > ---- + ----- + ----- + 14 a z + ---- - ----- - ----- + ----- + 8 a z - 6 4 2 7 5 3 a a a a a a a 6 6 6 7 7 7 3 5 6 9 z 31 z 72 z 2 6 15 z 9 z 41 z > 3 a z - 45 z + ---- - ----- - ----- - 13 a z + ----- - ---- - ----- - 6 4 2 5 3 a a a a a a 8 8 9 9 7 3 7 8 17 z 20 z 2 8 11 z 17 z 9 > 16 a z + a z + 7 z + ----- + ----- + 4 a z + ----- + ----- + 6 a z + 4 2 3 a a a a 10 10 3 z > 3 z + ----- 2 a
In[15]:=	{Vassiliev[2][Knot[11, Alternating, 286]], Vassiliev[3][Knot[11, Alternating, 286]]}
Out[15]=	{1, 0}
In[16]:=	Kh[Knot[11, Alternating, 286]][q, t]
Out[16]=	3 1 3 1 6 3 9 6 11 13 q + 12 q + ----- + ----- + ----- + ----- + ----- + ----- + ---- + --- + 9 5 7 4 5 4 5 3 3 3 3 2 2 q t q t q t q t q t q t q t q t 9 q 3 5 5 2 7 2 7 3 9 3 > --- + 11 q t + 12 q t + 10 q t + 11 q t + 6 q t + 10 q t + t 9 4 11 4 11 5 13 5 15 6 > 3 q t + 6 q t + q t + 3 q t + q t
