This page is passe. Go here instead!    The Knot K11a230 Visit K11a230's page at Knotilus! Acknowledgement

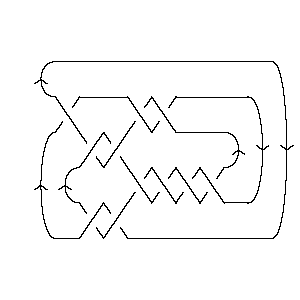

DrawMorseLink

PD Presentation:

X4251 X12,4,13,3 X20,6,21,5 X18,8,19,7 X16,10,17,9 X2,12,3,11 X22,13,1,14 X10,16,11,15 X8,18,9,17 X6,20,7,19 X14,21,15,22

Gauss Code:

{1, -6, 2, -1, 3, -10, 4, -9, 5, -8, 6, -2, 7, -11, 8, -5, 9, -4, 10, -3, 11, -7}

DT (Dowker-Thistlethwaite) Code:

4 12 20 18 16 2 22 10 8 6 14

Alexander Polynomial:

- 3t-2 + 13t-1 - 19 + 13t - 3t2

Conway Polynomial:

1 + z2 - 3z4

Other knots with the same Alexander/Conway Polynomial:

{1036, K11n29, ...}

Determinant and Signature:

{51, 2}

Jones Polynomial:

q-1 - 2 + 4q - 5q2 + 7q3 - 8q4 + 7q5 - 6q6 + 5q7 - 3q8 + 2q9 - q10

Other knots (up to mirrors) with the same Jones Polynomial:

{...}

A2 (sl(3)) Invariant:

q-4 + 2q2 - q4 + q6 + q8 - q10 - q14 - q20 + 2q22 + q24 + q28 - q30 - q32

HOMFLY-PT Polynomial:

- a-10 + 2a-8 + 2a-8z2 - a-6 - a-6z2 - a-6z4 - a-4z4 - a-2z2 - a-2z4 + 1 + z2

Kauffman Polynomial:

- a-11z + 6a-11z3 - 5a-11z5 + a-11z7 + a-10 - 7a-10z2 + 14a-10z4 - 10a-10z6 + 2a-10z8 + 2a-9z - 6a-9z3 + 11a-9z5 - 9a-9z7 + 2a-9z9 + 2a-8 - 12a-8z2 + 15a-8z4 - 6a-8z6 - 2a-8z8 + a-8z10 + 6a-7z - 23a-7z3 + 31a-7z5 - 19a-7z7 + 4a-7z9 + a-6 - 5a-6z2 + 7a-6z4 - 2a-6z6 - 2a-6z8 + a-6z10 + 3a-5z - 7a-5z3 + 11a-5z5 - 7a-5z7 + 2a-5z9 + 4a-4z4 - 4a-4z6 + 2a-4z8 + a-3z3 - 2a-3z5 + 2a-3z7 - 2a-2z2 - a-2z4 + 2a-2z6 - 3a-1z3 + 2a-1z5 + 1 - 2z2 + z4

V2 and V3, the type 2 and 3 Vassiliev invariants:

{1, 4}

Khovanov Homology: (The squares with yellow highlighting are those on the "critical diagonals", where j-2r=s+1 or j-2r=s+1, where s=2 is the signature of 11230. Nonzero entries off the critical diagonals (if any exist) are highlighted in red.)

trqj r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 r = 7 r = 8 r = 9 j = 21                       1 j = 19                     1   j = 17                   2 1   j = 15                 3 1     j = 13               3 2       j = 11             4 3         j = 9           4 3           j = 7         3 4             j = 5       2 4               j = 3     2 3                 j = 1   1 3                   j = -1   1                     j = -3 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Show[DrawMorseLink[Knot[11, Alternating, 230]]]
Out[2]=	-Graphics-
In[3]:=	PD[Knot[11, Alternating, 230]]
Out[3]=	PD[X[4, 2, 5, 1], X[12, 4, 13, 3], X[20, 6, 21, 5], X[18, 8, 19, 7], > X[16, 10, 17, 9], X[2, 12, 3, 11], X[22, 13, 1, 14], X[10, 16, 11, 15], > X[8, 18, 9, 17], X[6, 20, 7, 19], X[14, 21, 15, 22]]
In[4]:=	GaussCode[Knot[11, Alternating, 230]]
Out[4]=	GaussCode[1, -6, 2, -1, 3, -10, 4, -9, 5, -8, 6, -2, 7, -11, 8, -5, 9, -4, 10, > -3, 11, -7]
In[5]:=	DTCode[Knot[11, Alternating, 230]]
Out[5]=	DTCode[4, 12, 20, 18, 16, 2, 22, 10, 8, 6, 14]
In[6]:=	alex = Alexander[Knot[11, Alternating, 230]][t]
Out[6]=	3 13 2 -19 - -- + -- + 13 t - 3 t 2 t t
In[7]:=	Conway[Knot[11, Alternating, 230]][z]
Out[7]=	2 4 1 + z - 3 z
In[8]:=	Select[AllKnots[], (alex === Alexander[#][t])&]
Out[8]=	{Knot[10, 36], Knot[11, Alternating, 230], Knot[11, NonAlternating, 29]}
In[9]:=	{KnotDet[Knot[11, Alternating, 230]], KnotSignature[Knot[11, Alternating, 230]]}
Out[9]=	{51, 2}
In[10]:=	J=Jones[Knot[11, Alternating, 230]][q]
Out[10]=	1 2 3 4 5 6 7 8 9 10 -2 + - + 4 q - 5 q + 7 q - 8 q + 7 q - 6 q + 5 q - 3 q + 2 q - q q
In[11]:=	Select[AllKnots[], (J === Jones[#][q] || (J /. q-> 1/q) === Jones[#][q])&]
Out[11]=	{Knot[11, Alternating, 230]}
In[12]:=	A2Invariant[Knot[11, Alternating, 230]][q]
Out[12]=	-4 2 4 6 8 10 14 20 22 24 28 30 32 q + 2 q - q + q + q - q - q - q + 2 q + q + q - q - q
In[13]:=	HOMFLYPT[Knot[11, Alternating, 230]][a, z]
Out[13]=	2 2 2 4 4 4 -10 2 -6 2 2 z z z z z z 1 - a + -- - a + z + ---- - -- - -- - -- - -- - -- 8 8 6 2 6 4 2 a a a a a a a
In[14]:=	Kauffman[Knot[11, Alternating, 230]][a, z]
Out[14]=	2 2 2 -10 2 -6 z 2 z 6 z 3 z 2 7 z 12 z 5 z 1 + a + -- + a - --- + --- + --- + --- - 2 z - ---- - ----- - ---- - 8 11 9 7 5 10 8 6 a a a a a a a a 2 3 3 3 3 3 3 4 4 4 2 z 6 z 6 z 23 z 7 z z 3 z 4 14 z 15 z 7 z > ---- + ---- - ---- - ----- - ---- + -- - ---- + z + ----- + ----- + ---- + 2 11 9 7 5 3 a 10 8 6 a a a a a a a a a 4 4 5 5 5 5 5 5 6 6 4 z z 5 z 11 z 31 z 11 z 2 z 2 z 10 z 6 z > ---- - -- - ---- + ----- + ----- + ----- - ---- + ---- - ----- - ---- - 4 2 11 9 7 5 3 a 10 8 a a a a a a a a a 6 6 6 7 7 7 7 7 8 8 2 z 4 z 2 z z 9 z 19 z 7 z 2 z 2 z 2 z > ---- - ---- + ---- + --- - ---- - ----- - ---- + ---- + ---- - ---- - 6 4 2 11 9 7 5 3 10 8 a a a a a a a a a a 8 8 9 9 9 10 10 2 z 2 z 2 z 4 z 2 z z z > ---- + ---- + ---- + ---- + ---- + --- + --- 6 4 9 7 5 8 6 a a a a a a a
In[15]:=	{Vassiliev[2][Knot[11, Alternating, 230]], Vassiliev[3][Knot[11, Alternating, 230]]}
Out[15]=	{1, 4}
In[16]:=	Kh[Knot[11, Alternating, 230]][q, t]
Out[16]=	3 1 1 q 3 5 5 2 7 2 7 3 3 q + 2 q + ----- + --- + - + 3 q t + 2 q t + 4 q t + 3 q t + 4 q t + 3 2 q t t q t 9 3 9 4 11 4 11 5 13 5 13 6 15 6 > 4 q t + 3 q t + 4 q t + 3 q t + 3 q t + 2 q t + 3 q t + 15 7 17 7 17 8 19 8 21 9 > q t + 2 q t + q t + q t + q t
