This page is passe. Go here instead! The 3-Component Link L11a422 Visit L11a422's page at Knotilus! Acknowledgement

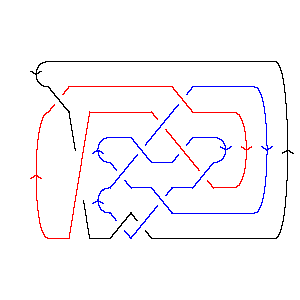

DrawMorseLink

PD Presentation:

X6172 X12,3,13,4 X18,13,19,14 X22,17,11,18 X16,7,17,8 X8,22,9,21 X20,10,21,9 X10,15,5,16 X14,19,15,20 X2536 X4,11,1,12

Gauss Code:

{{1, -10, 2, -11}, {10, -1, 5, -6, 7, -8}, {11, -2, 3, -9, 8, -5, 4, -3, 9, -7, 6, -4}}

Jones Polynomial:

- q-11 + 3q-10 - 8q-9 + 14q-8 - 19q-7 + 23q-6 - 22q-5 + 21q-4 - 14q-3 + 10q-2 - 4q-1 + 1

A2 (sl(3)) Invariant:

- q-34 - q-32 - 5q-28 + q-26 + q-24 - 2q-22 + 7q-20 + q-18 + 8q-16 + 6q-14 + 3q-12 + 8q-10 - 2q-8 + 3q-6 + q-4 - 2q-2 + 1

HOMFLY-PT Polynomial:

a2z2 + a2z4 + 2a4z-2 + 7a4 + 6a4z2 - a4z6 - 5a6z-2 - 14a6 - 13a6z2 - 7a6z4 - 2a6z6 + 4a8z-2 + 9a8 + 8a8z2 + 3a8z4 - a10z-2 - 2a10 - a10z2

Kauffman Polynomial:

a2z2 - 2a2z4 + a2z6 + 3a3z3 - 8a3z5 + 4a3z7 - 2a4z-2 + 9a4 - 14a4z2 + 18a4z4 - 20a4z6 + 8a4z8 + 5a5z-1 - 13a5z + 13a5z3 - 5a5z5 - 10a5z7 + 7a5z9 - 5a6z-2 + 21a6 - 47a6z2 + 67a6z4 - 56a6z6 + 16a6z8 + 2a6z10 + 9a7z-1 - 29a7z + 34a7z3 - 7a7z5 - 20a7z7 + 13a7z9 - 4a8z-2 + 18a8 - 44a8z2 + 65a8z4 - 51a8z6 + 16a8z8 + 2a8z10 + 5a9z-1 - 21a9z + 33a9z3 - 20a9z5 + 6a9z9 - a10z-2 + 5a10 - 11a10z2 + 14a10z4 - 13a10z6 + 8a10z8 + a11z-1 - 4a11z + 7a11z3 - 9a11z5 + 6a11z7 + a12z2 - 4a12z4 + 3a12z6 + a13z - 2a13z3 + a13z5

Khovanov Homology:

trqj r = -9 r = -8 r = -7 r = -6 r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 j = 1                       1 j = -1                     3   j = -3                   7 1   j = -5                 8 4     j = -7               13 6       j = -9             11 10         j = -11           12 11           j = -13         8 12             j = -15       6 11               j = -17     2 8                 j = -19   1 6                   j = -21   2                     j = -23 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Length[Skeleton[L]]
Out[2]=	3
In[3]:=	Show[DrawMorseLink[Link[11, Alternating, 422]]]
Out[3]=	-Graphics-
In[4]:=	PD[L = Link[11, Alternating, 422]]
Out[4]=	PD[X[6, 1, 7, 2], X[12, 3, 13, 4], X[18, 13, 19, 14], X[22, 17, 11, 18], > X[16, 7, 17, 8], X[8, 22, 9, 21], X[20, 10, 21, 9], X[10, 15, 5, 16], > X[14, 19, 15, 20], X[2, 5, 3, 6], X[4, 11, 1, 12]]
In[5]:=	GaussCode[L]
Out[5]=	GaussCode[{1, -10, 2, -11}, {10, -1, 5, -6, 7, -8}, > {11, -2, 3, -9, 8, -5, 4, -3, 9, -7, 6, -4}]
In[6]:=	Jones[L][q]
Out[6]=	-11 3 8 14 19 23 22 21 14 10 4 1 - q + --- - -- + -- - -- + -- - -- + -- - -- + -- - - 10 9 8 7 6 5 4 3 2 q q q q q q q q q q
In[7]:=	A2Invariant[L][q]
Out[7]=	-34 -32 5 -26 -24 2 7 -18 8 6 3 1 - q - q - --- + q + q - --- + --- + q + --- + --- + --- + 28 22 20 16 14 12 q q q q q q 8 2 3 -4 2 > --- - -- + -- + q - -- 10 8 6 2 q q q q
In[8]:=	HOMFLYPT[Link[11, Alternating, 422]][a, z]
Out[8]=	4 6 8 10 4 6 8 10 2 a 5 a 4 a a 2 2 4 2 7 a - 14 a + 9 a - 2 a + ---- - ---- + ---- - --- + a z + 6 a z - 2 2 2 2 z z z z 6 2 8 2 10 2 2 4 6 4 8 4 4 6 6 6 > 13 a z + 8 a z - a z + a z - 7 a z + 3 a z - a z - 2 a z
In[9]:=	Kauffman[Link[11, Alternating, 422]][a, z]
Out[9]=	4 6 8 10 5 7 9 4 6 8 10 2 a 5 a 4 a a 5 a 9 a 5 a 9 a + 21 a + 18 a + 5 a - ---- - ---- - ---- - --- + ---- + ---- + ---- + 2 2 2 2 z z z z z z z 11 a 5 7 9 11 13 2 2 4 2 > --- - 13 a z - 29 a z - 21 a z - 4 a z + a z + a z - 14 a z - z 6 2 8 2 10 2 12 2 3 3 5 3 7 3 > 47 a z - 44 a z - 11 a z + a z + 3 a z + 13 a z + 34 a z + 9 3 11 3 13 3 2 4 4 4 6 4 8 4 > 33 a z + 7 a z - 2 a z - 2 a z + 18 a z + 67 a z + 65 a z + 10 4 12 4 3 5 5 5 7 5 9 5 11 5 > 14 a z - 4 a z - 8 a z - 5 a z - 7 a z - 20 a z - 9 a z + 13 5 2 6 4 6 6 6 8 6 10 6 12 6 > a z + a z - 20 a z - 56 a z - 51 a z - 13 a z + 3 a z + 3 7 5 7 7 7 11 7 4 8 6 8 8 8 > 4 a z - 10 a z - 20 a z + 6 a z + 8 a z + 16 a z + 16 a z + 10 8 5 9 7 9 9 9 6 10 8 10 > 8 a z + 7 a z + 13 a z + 6 a z + 2 a z + 2 a z
In[10]:=	Kh[L][q, t]
Out[10]=	4 7 1 2 1 6 2 8 6 -- + -- + ------ + ------ + ------ + ------ + ------ + ------ + ------ + 5 3 23 9 21 8 19 8 19 7 17 7 17 6 15 6 q q q t q t q t q t q t q t q t 11 8 12 12 11 11 10 13 6 > ------ + ------ + ------ + ------ + ------ + ----- + ----- + ----- + ---- + 15 5 13 5 13 4 11 4 11 3 9 3 9 2 7 2 7 q t q t q t q t q t q t q t q t q t 8 t 3 t 2 > ---- + -- + --- + q t 5 3 q q t q
