This page is passe. Go here instead! The 2-Component Link L11n86 Visit L11n86's page at Knotilus! Acknowledgement

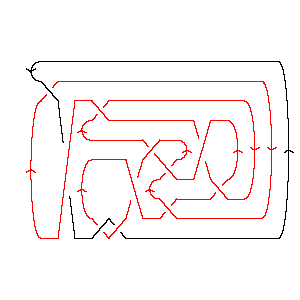

DrawMorseLink

PD Presentation:

X6172 X12,3,13,4 X14,8,15,7 X18,10,19,9 X19,5,20,22 X15,21,16,20 X21,17,22,16 X8,18,9,17 X10,14,11,13 X2536 X4,11,1,12

Gauss Code:

{{1, -10, 2, -11}, {10, -1, 3, -8, 4, -9, 11, -2, 9, -3, -6, 7, 8, -4, -5, 6, -7, 5}}

Jones Polynomial:

- q-5/2 + q-3/2 - 4q-1/2 + 4q1/2 - 6q3/2 + 6q5/2 - 5q7/2 + 5q9/2 - 3q11/2 + q13/2

A2 (sl(3)) Invariant:

q-8 + 2q-6 + 2q-4 + 4q-2 + 3 + 3q2 + q4 - q6 - 4q10 - q12 - 2q14 + q18 + q22 - q24

HOMFLY-PT Polynomial:

a-7z - 3a-5z - 4a-5z3 - a-5z5 + 2a-3z-1 + 7a-3z + 8a-3z3 + 5a-3z5 + a-3z7 - 5a-1z-1 - 11a-1z - 9a-1z3 - 2a-1z5 + 3az-1 + 4az + az3

Kauffman Polynomial:

- a-8z2 + a-7z - 3a-7z3 - a-6 + 2a-6z2 - a-6z4 - a-6z6 + 2a-5z - 9a-5z3 + 9a-5z5 - 3a-5z7 + 8a-4z2 - 14a-4z4 + 11a-4z6 - 3a-4z8 - 2a-3z-1 + 4a-3z - 9a-3z3 + 9a-3z5 - a-3z9 + 5a-2 - 4a-2z2 - 11a-2z4 + 15a-2z6 - 4a-2z8 - 5a-1z-1 + 13a-1z - 15a-1z3 + 6a-1z5 + 2a-1z7 - a-1z9 + 5 - 9z2 + 2z4 + 3z6 - z8 - 3az-1 + 10az - 12az3 + 6az5 - az7

Khovanov Homology:

trqj r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 j = 14                   1 j = 12                 2   j = 10               3 1   j = 8             2 2     j = 6           4 3       j = 4         2 2         j = 2       3 5           j = 0     1 1             j = -2     3               j = -4 1 1                 j = -6 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Length[Skeleton[L]]
Out[2]=	2
In[3]:=	Show[DrawMorseLink[Link[11, NonAlternating, 86]]]
Out[3]=	-Graphics-
In[4]:=	PD[L = Link[11, NonAlternating, 86]]
Out[4]=	PD[X[6, 1, 7, 2], X[12, 3, 13, 4], X[14, 8, 15, 7], X[18, 10, 19, 9], > X[19, 5, 20, 22], X[15, 21, 16, 20], X[21, 17, 22, 16], X[8, 18, 9, 17], > X[10, 14, 11, 13], X[2, 5, 3, 6], X[4, 11, 1, 12]]
In[5]:=	GaussCode[L]
Out[5]=	GaussCode[{1, -10, 2, -11}, {10, -1, 3, -8, 4, -9, 11, -2, 9, -3, -6, 7, 8, -4, > -5, 6, -7, 5}]
In[6]:=	Jones[L][q]
Out[6]=	-(5/2) -(3/2) 4 3/2 5/2 7/2 9/2 -q + q - ------- + 4 Sqrt[q] - 6 q + 6 q - 5 q + 5 q - Sqrt[q] 11/2 13/2 > 3 q + q
In[7]:=	A2Invariant[L][q]
Out[7]=	-8 2 2 4 2 4 6 10 12 14 18 22 24 3 + q + -- + -- + -- + 3 q + q - q - 4 q - q - 2 q + q + q - q 6 4 2 q q q
In[8]:=	HOMFLYPT[Link[11, NonAlternating, 86]][a, z]
Out[8]=	3 3 3 2 5 3 a z 3 z 7 z 11 z 4 z 8 z 9 z 3 ---- - --- + --- + -- - --- + --- - ---- + 4 a z - ---- + ---- - ---- + a z - 3 a z z 7 5 3 a 5 3 a a z a a a a a 5 5 5 7 z 5 z 2 z z > -- + ---- - ---- + -- 5 3 a 3 a a a
In[9]:=	Kauffman[Link[11, NonAlternating, 86]][a, z]
Out[9]=	2 -6 5 2 5 3 a z 2 z 4 z 13 z 2 z 5 - a + -- - ---- - --- - --- + -- + --- + --- + ---- + 10 a z - 9 z - -- + 2 3 a z z 7 5 3 a 8 a a z a a a a 2 2 2 3 3 3 3 4 2 z 8 z 4 z 3 z 9 z 9 z 15 z 3 4 z > ---- + ---- - ---- - ---- - ---- - ---- - ----- - 12 a z + 2 z - -- - 6 4 2 7 5 3 a 6 a a a a a a a 4 4 5 5 5 6 6 6 14 z 11 z 9 z 9 z 6 z 5 6 z 11 z 15 z > ----- - ----- + ---- + ---- + ---- + 6 a z + 3 z - -- + ----- + ----- - 4 2 5 3 a 6 4 2 a a a a a a a 7 7 8 8 9 9 3 z 2 z 7 8 3 z 4 z z z > ---- + ---- - a z - z - ---- - ---- - -- - -- 5 a 4 2 3 a a a a a
In[10]:=	Kh[L][q, t]
Out[10]=	2 2 4 1 1 1 -2 3 1 3 q 4 5 q + 2 q + ----- + ----- + ----- + t + ----- + - + ---- + 2 q t + 6 4 4 4 4 3 2 2 t t q t q t q t q t 6 6 2 8 2 8 3 10 3 10 4 12 4 14 5 > 4 q t + 3 q t + 2 q t + 2 q t + 3 q t + q t + 2 q t + q t
