This page is passe. Go here instead! The 2-Component Link L11n17 Visit L11n17's page at Knotilus! Acknowledgement

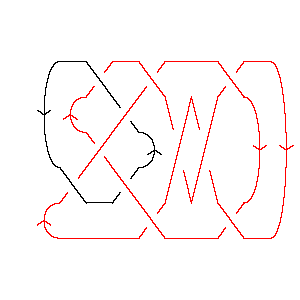

DrawMorseLink

PD Presentation:

X6172 X14,7,15,8 X15,1,16,4 X5,12,6,13 X3849 X9,16,10,17 X11,20,12,21 X17,22,18,5 X21,18,22,19 X19,10,20,11 X2,14,3,13

Gauss Code:

{{1, -11, -5, 3}, {-4, -1, 2, 5, -6, 10, -7, 4, 11, -2, -3, 6, -8, 9, -10, 7, -9, 8}}

Jones Polynomial:

q-21/2 - 2q-19/2 + 4q-17/2 - 6q-15/2 + 8q-13/2 - 8q-11/2 + 7q-9/2 - 7q-7/2 + 3q-5/2 - 2q-3/2

A2 (sl(3)) Invariant:

- q-32 - q-28 - 2q-26 + q-24 - 2q-22 - q-20 + 4q-14 + 2q-12 + 4q-10 + 3q-8 + 2q-4

HOMFLY-PT Polynomial:

- 2a3z-1 - 4a3z - 2a3z3 + 2a5z-1 + 2a5z + 2a5z3 + a5z5 + a7z-1 + 4a7z + 3a7z3 + a7z5 - a9z-1 - 2a9z - a9z3

Kauffman Polynomial:

- 2a3z-1 + 5a3z - 3a3z3 + 3a4 - 3a4z2 - a4z6 - 2a5z-1 + 4a5z - 6a5z3 + 3a5z5 - 2a5z7 + 5a6z2 - 8a6z4 + 4a6z6 - 2a6z8 + a7z-1 - 2a7z + a7z5 - a7z9 - 3a8 + 11a8z2 - 13a8z4 + 11a8z6 - 4a8z8 + a9z-1 - 3a9z3 + 5a9z5 - a9z9 - a10z2 - a10z4 + 5a10z6 - 2a10z8 + a11z - 6a11z3 + 7a11z5 - 2a11z7 + a12 - 4a12z2 + 4a12z4 - a12z6

Khovanov Homology:

trqj r = -9 r = -8 r = -7 r = -6 r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 j = -2                   2 j = -4                 3 2 j = -6               4     j = -8             3 3     j = -10           5 4       j = -12         3 3         j = -14       3 5           j = -16     1 3             j = -18   1 3               j = -20   1                 j = -22 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Length[Skeleton[L]]
Out[2]=	2
In[3]:=	Show[DrawMorseLink[Link[11, NonAlternating, 17]]]
Out[3]=	-Graphics-
In[4]:=	PD[L = Link[11, NonAlternating, 17]]
Out[4]=	PD[X[6, 1, 7, 2], X[14, 7, 15, 8], X[15, 1, 16, 4], X[5, 12, 6, 13], > X[3, 8, 4, 9], X[9, 16, 10, 17], X[11, 20, 12, 21], X[17, 22, 18, 5], > X[21, 18, 22, 19], X[19, 10, 20, 11], X[2, 14, 3, 13]]
In[5]:=	GaussCode[L]
Out[5]=	GaussCode[{1, -11, -5, 3}, {-4, -1, 2, 5, -6, 10, -7, 4, 11, -2, -3, 6, -8, 9, > -10, 7, -9, 8}]
In[6]:=	Jones[L][q]
Out[6]=	-(21/2) 2 4 6 8 8 7 7 3 2 q - ----- + ----- - ----- + ----- - ----- + ---- - ---- + ---- - ---- 19/2 17/2 15/2 13/2 11/2 9/2 7/2 5/2 3/2 q q q q q q q q q
In[7]:=	A2Invariant[L][q]
Out[7]=	-32 -28 2 -24 2 -20 4 2 4 3 2 -q - q - --- + q - --- - q + --- + --- + --- + -- + -- 26 22 14 12 10 8 4 q q q q q q q
In[8]:=	HOMFLYPT[Link[11, NonAlternating, 17]][a, z]
Out[8]=	3 5 7 9 -2 a 2 a a a 3 5 7 9 3 3 ----- + ---- + -- - -- - 4 a z + 2 a z + 4 a z - 2 a z - 2 a z + z z z z 5 3 7 3 9 3 5 5 7 5 > 2 a z + 3 a z - a z + a z + a z
In[9]:=	Kauffman[Link[11, NonAlternating, 17]][a, z]
Out[9]=	3 5 7 9 4 8 12 2 a 2 a a a 3 5 7 11 3 a - 3 a + a - ---- - ---- + -- + -- + 5 a z + 4 a z - 2 a z + a z - z z z z 4 2 6 2 8 2 10 2 12 2 3 3 5 3 > 3 a z + 5 a z + 11 a z - a z - 4 a z - 3 a z - 6 a z - 9 3 11 3 6 4 8 4 10 4 12 4 5 5 > 3 a z - 6 a z - 8 a z - 13 a z - a z + 4 a z + 3 a z + 7 5 9 5 11 5 4 6 6 6 8 6 10 6 > a z + 5 a z + 7 a z - a z + 4 a z + 11 a z + 5 a z - 12 6 5 7 11 7 6 8 8 8 10 8 7 9 9 9 > a z - 2 a z - 2 a z - 2 a z - 4 a z - 2 a z - a z - a z
In[10]:=	Kh[L][q, t]
Out[10]=	2 2 1 1 1 3 1 3 3 -- + -- + ------ + ------ + ------ + ------ + ------ + ------ + ------ + 4 2 22 9 20 8 18 8 18 7 16 7 16 6 14 6 q q q t q t q t q t q t q t q t 5 3 3 5 4 3 3 4 3 > ------ + ------ + ------ + ------ + ------ + ----- + ----- + ----- + ---- 14 5 12 5 12 4 10 4 10 3 8 3 8 2 6 2 4 q t q t q t q t q t q t q t q t q t
