This page is passe. Go here instead! The 2-Component Link L11a368 Visit L11a368's page at Knotilus! Acknowledgement

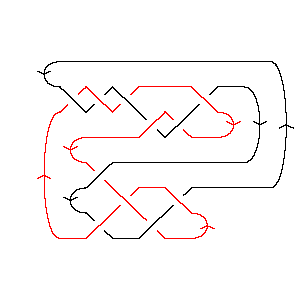

DrawMorseLink

PD Presentation:

X12,1,13,2 X2,13,3,14 X14,3,15,4 X18,7,19,8 X8,11,9,12 X20,10,21,9 X22,20,11,19 X10,22,1,21 X4,17,5,18 X16,5,17,6 X6,15,7,16

Gauss Code:

{{1, -2, 3, -9, 10, -11, 4, -5, 6, -8}, {5, -1, 2, -3, 11, -10, 9, -4, 7, -6, 8, -7}}

Jones Polynomial:

- q-19/2 + 2q-17/2 - 4q-15/2 + 7q-13/2 - 10q-11/2 + 11q-9/2 - 12q-7/2 + 10q-5/2 - 8q-3/2 + 5q-1/2 - 3q1/2 + q3/2

A2 (sl(3)) Invariant:

q-28 + q-24 + q-22 - q-20 + 2q-18 - q-16 + 2q-14 + 2q-12 + 3q-8 - 2q-6 + q-4 + q2 - q4

HOMFLY-PT Polynomial:

az + 3az3 + az5 - a3z - 4a3z3 - 4a3z5 - a3z7 - a5z-1 - 7a5z - 9a5z3 - 5a5z5 - a5z7 + a7z-1 + 4a7z + 4a7z3 + a7z5

Kauffman Polynomial:

- z2 + 3z4 - z6 + az - 7az3 + 10az5 - 3az7 + 2a2z2 - 10a2z4 + 13a2z6 - 4a2z8 + a3z3 - 5a3z5 + 8a3z7 - 3a3z9 + 6a4z2 - 17a4z4 + 13a4z6 - 2a4z8 - a4z10 + a5z-1 - 9a5z + 24a5z3 - 31a5z5 + 18a5z7 - 5a5z9 - a6 + 7a6z2 - 10a6z4 + 3a6z6 - a6z10 + a7z-1 - 7a7z + 15a7z3 - 13a7z5 + 5a7z7 - 2a7z9 + a8z2 - a8z4 + 2a8z6 - 2a8z8 - a9z + 2a9z3 + 2a9z5 - 2a9z7 - 3a10z2 + 5a10z4 - 2a10z6 - 2a11z + 3a11z3 - a11z5

Khovanov Homology:

trqj r = -8 r = -7 r = -6 r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 j = 4                       1 j = 2                     2   j = 0                   3 1   j = -2                 5 2     j = -4               6 4       j = -6             6 4         j = -8           5 6           j = -10         5 6             j = -12       2 5               j = -14     2 5                 j = -16   1 3                   j = -18   1                     j = -20 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Length[Skeleton[L]]
Out[2]=	2
In[3]:=	Show[DrawMorseLink[Link[11, Alternating, 368]]]
Out[3]=	-Graphics-
In[4]:=	PD[L = Link[11, Alternating, 368]]
Out[4]=	PD[X[12, 1, 13, 2], X[2, 13, 3, 14], X[14, 3, 15, 4], X[18, 7, 19, 8], > X[8, 11, 9, 12], X[20, 10, 21, 9], X[22, 20, 11, 19], X[10, 22, 1, 21], > X[4, 17, 5, 18], X[16, 5, 17, 6], X[6, 15, 7, 16]]
In[5]:=	GaussCode[L]
Out[5]=	GaussCode[{1, -2, 3, -9, 10, -11, 4, -5, 6, -8}, > {5, -1, 2, -3, 11, -10, 9, -4, 7, -6, 8, -7}]
In[6]:=	Jones[L][q]
Out[6]=	-(19/2) 2 4 7 10 11 12 10 8 -q + ----- - ----- + ----- - ----- + ---- - ---- + ---- - ---- + 17/2 15/2 13/2 11/2 9/2 7/2 5/2 3/2 q q q q q q q q 5 3/2 > ------- - 3 Sqrt[q] + q Sqrt[q]
In[7]:=	A2Invariant[L][q]
Out[7]=	-28 -24 -22 -20 2 -16 2 2 3 2 -4 2 4 q + q + q - q + --- - q + --- + --- + -- - -- + q + q - q 18 14 12 8 6 q q q q q
In[8]:=	HOMFLYPT[Link[11, Alternating, 368]][a, z]
Out[8]=	5 7 a a 3 5 7 3 3 3 5 3 -(--) + -- + a z - a z - 7 a z + 4 a z + 3 a z - 4 a z - 9 a z + z z 7 3 5 3 5 5 5 7 5 3 7 5 7 > 4 a z + a z - 4 a z - 5 a z + a z - a z - a z
In[9]:=	Kauffman[Link[11, Alternating, 368]][a, z]
Out[9]=	5 7 6 a a 5 7 9 11 2 2 2 -a + -- + -- + a z - 9 a z - 7 a z - a z - 2 a z - z + 2 a z + z z 4 2 6 2 8 2 10 2 3 3 3 5 3 > 6 a z + 7 a z + a z - 3 a z - 7 a z + a z + 24 a z + 7 3 9 3 11 3 4 2 4 4 4 6 4 > 15 a z + 2 a z + 3 a z + 3 z - 10 a z - 17 a z - 10 a z - 8 4 10 4 5 3 5 5 5 7 5 9 5 > a z + 5 a z + 10 a z - 5 a z - 31 a z - 13 a z + 2 a z - 11 5 6 2 6 4 6 6 6 8 6 10 6 7 > a z - z + 13 a z + 13 a z + 3 a z + 2 a z - 2 a z - 3 a z + 3 7 5 7 7 7 9 7 2 8 4 8 8 8 > 8 a z + 18 a z + 5 a z - 2 a z - 4 a z - 2 a z - 2 a z - 3 9 5 9 7 9 4 10 6 10 > 3 a z - 5 a z - 2 a z - a z - a z
In[10]:=	Kh[L][q, t]
Out[10]=	4 5 1 1 1 3 2 5 2 -- + -- + ------ + ------ + ------ + ------ + ------ + ------ + ------ + 4 2 20 8 18 7 16 7 16 6 14 6 14 5 12 5 q q q t q t q t q t q t q t q t 5 5 6 5 6 6 4 6 > ------ + ------ + ------ + ----- + ----- + ----- + ---- + ---- + 3 t + 12 4 10 4 10 3 8 3 8 2 6 2 6 4 q t q t q t q t q t q t q t q t 2 t 2 2 2 4 3 > --- + t + 2 q t + q t 2 q
