This page is passe. Go here instead! The 2-Component Link L11a224 Visit L11a224's page at Knotilus! Acknowledgement

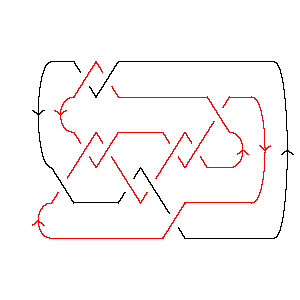

DrawMorseLink

PD Presentation:

X8192 X16,6,17,5 X18,10,19,9 X10,20,11,19 X2,11,3,12 X12,3,13,4 X4758 X20,14,21,13 X22,16,7,15 X6,18,1,17 X14,22,15,21

Gauss Code:

{{1, -5, 6, -7, 2, -10}, {7, -1, 3, -4, 5, -6, 8, -11, 9, -2, 10, -3, 4, -8, 11, -9}}

Jones Polynomial:

- q-5/2 + 3q-3/2 - 7q-1/2 + 10q1/2 - 15q3/2 + 16q5/2 - 17q7/2 + 15q9/2 - 11q11/2 + 7q13/2 - 3q15/2 + q17/2

A2 (sl(3)) Invariant:

q-6 - q-4 + 3q-2 + 3q2 + 4q4 + 6q8 - 3q10 + 2q12 - 2q14 - 2q16 + q18 - 3q20 + q22 - q24

HOMFLY-PT Polynomial:

2a-5z-1 + 7a-5z + 9a-5z3 + 5a-5z5 + a-5z7 - 5a-3z-1 - 16a-3z - 25a-3z3 - 19a-3z5 - 7a-3z7 - a-3z9 + 3a-1z-1 + 8a-1z + 9a-1z3 + 5a-1z5 + a-1z7

Kauffman Polynomial:

a-10z2 - a-10z4 + 2a-9z3 - 3a-9z5 + a-8 - 5a-8z2 + 7a-8z4 - 6a-8z6 - 7a-7z3 + 11a-7z5 - 8a-7z7 - 6a-6z4 + 12a-6z6 - 8a-6z8 + 2a-5z-1 - 9a-5z + 15a-5z3 - 10a-5z5 + 10a-5z7 - 6a-5z9 - 5a-4 + 18a-4z2 - 27a-4z4 + 26a-4z6 - 6a-4z8 - 2a-4z10 + 5a-3z-1 - 20a-3z + 37a-3z3 - 40a-3z5 + 32a-3z7 - 10a-3z9 - 5a-2 + 14a-2z2 - 24a-2z4 + 19a-2z6 - a-2z8 - 2a-2z10 + 3a-1z-1 - 9a-1z + 8a-1z3 - 12a-1z5 + 13a-1z7 - 4a-1z9 + 2z2 - 11z4 + 11z6 - 3z8 + 2az - 5az3 + 4az5 - az7

Khovanov Homology:

trqj r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 r = 6 r = 7 j = 18                       1 j = 16                     2   j = 14                   5 1   j = 12                 6 2     j = 10               9 5       j = 8             8 6         j = 6           8 9           j = 4         7 8             j = 2       4 9               j = 0     3 6                 j = -2   1 5                   j = -4   2                     j = -6 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Length[Skeleton[L]]
Out[2]=	2
In[3]:=	Show[DrawMorseLink[Link[11, Alternating, 224]]]
Out[3]=	-Graphics-
In[4]:=	PD[L = Link[11, Alternating, 224]]
Out[4]=	PD[X[8, 1, 9, 2], X[16, 6, 17, 5], X[18, 10, 19, 9], X[10, 20, 11, 19], > X[2, 11, 3, 12], X[12, 3, 13, 4], X[4, 7, 5, 8], X[20, 14, 21, 13], > X[22, 16, 7, 15], X[6, 18, 1, 17], X[14, 22, 15, 21]]
In[5]:=	GaussCode[L]
Out[5]=	GaussCode[{1, -5, 6, -7, 2, -10}, > {7, -1, 3, -4, 5, -6, 8, -11, 9, -2, 10, -3, 4, -8, 11, -9}]
In[6]:=	Jones[L][q]
Out[6]=	-(5/2) 3 7 3/2 5/2 7/2 -q + ---- - ------- + 10 Sqrt[q] - 15 q + 16 q - 17 q + 3/2 Sqrt[q] q 9/2 11/2 13/2 15/2 17/2 > 15 q - 11 q + 7 q - 3 q + q
In[7]:=	A2Invariant[L][q]
Out[7]=	-6 -4 3 2 4 8 10 12 14 16 18 q - q + -- + 3 q + 4 q + 6 q - 3 q + 2 q - 2 q - 2 q + q - 2 q 20 22 24 > 3 q + q - q
In[8]:=	HOMFLYPT[Link[11, Alternating, 224]][a, z]
Out[8]=	3 3 3 5 5 2 5 3 7 z 16 z 8 z 9 z 25 z 9 z 5 z 19 z ---- - ---- + --- + --- - ---- + --- + ---- - ----- + ---- + ---- - ----- + 5 3 a z 5 3 a 5 3 a 5 3 a z a z a a a a a a 5 7 7 7 9 5 z z 7 z z z > ---- + -- - ---- + -- - -- a 5 3 a 3 a a a
In[9]:=	Kauffman[Link[11, Alternating, 224]][a, z]
Out[9]=	2 -8 5 5 2 5 3 9 z 20 z 9 z 2 z a - -- - -- + ---- + ---- + --- - --- - ---- - --- + 2 a z + 2 z + --- - 4 2 5 3 a z 5 3 a 10 a a a z a z a a a 2 2 2 3 3 3 3 3 5 z 18 z 14 z 2 z 7 z 15 z 37 z 8 z 3 > ---- + ----- + ----- + ---- - ---- + ----- + ----- + ---- - 5 a z - 8 4 2 9 7 5 3 a a a a a a a a 4 4 4 4 4 5 5 5 5 4 z 7 z 6 z 27 z 24 z 3 z 11 z 10 z 40 z > 11 z - --- + ---- - ---- - ----- - ----- - ---- + ----- - ----- - ----- - 10 8 6 4 2 9 7 5 3 a a a a a a a a a 5 6 6 6 6 7 7 12 z 5 6 6 z 12 z 26 z 19 z 8 z 10 z > ----- + 4 a z + 11 z - ---- + ----- + ----- + ----- - ---- + ----- + a 8 6 4 2 7 5 a a a a a a 7 7 8 8 8 9 9 9 32 z 13 z 7 8 8 z 6 z z 6 z 10 z 4 z > ----- + ----- - a z - 3 z - ---- - ---- - -- - ---- - ----- - ---- - 3 a 6 4 2 5 3 a a a a a a a 10 10 2 z 2 z > ----- - ----- 4 2 a a
In[10]:=	Kh[L][q, t]
Out[10]=	2 2 4 1 2 1 3 5 6 4 q 4 6 9 q + 7 q + ----- + ----- + ----- + -- + ----- + - + ---- + 8 q t + 8 q t + 6 4 4 3 2 3 2 2 2 t t q t q t q t t q t 6 2 8 2 8 3 10 3 10 4 12 4 12 5 > 9 q t + 8 q t + 6 q t + 9 q t + 5 q t + 6 q t + 2 q t + 14 5 14 6 16 6 18 7 > 5 q t + q t + 2 q t + q t
