© | Dror Bar-Natan: The Knot Atlas: The Thistlethwaite Link Table:

L11a172 L11a174

Knotscape

This page is passe. Go here instead! The 2-Component Link L11a173 Visit L11a173's page at Knotilus! Acknowledgement

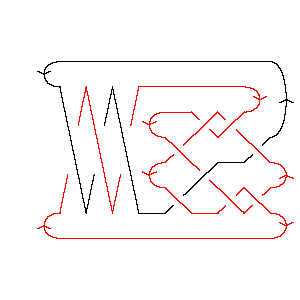

DrawMorseLink

PD Presentation:

X8192 X2,9,3,10 X10,3,11,4 X20,14,21,13 X14,6,15,5 X4,21,5,22 X16,7,17,8 X22,15,7,16 X18,12,19,11 X12,20,13,19 X6,18,1,17

Gauss Code:

{{1, -2, 3, -6, 5, -11}, {7, -1, 2, -3, 9, -10, 4, -5, 8, -7, 11, -9, 10, -4, 6, -8}}

Jones Polynomial:

- q-13/2 + 3q-11/2 - 6q-9/2 + 10q-7/2 - 14q-5/2 + 15q-3/2 - 16q-1/2 + 13q1/2 - 10q3/2 + 6q5/2 - 3q7/2 + q9/2

A2 (sl(3)) Invariant:

q-18 - q-16 + 2q-14 - 2q-12 + q-10 + 2q-8 - q-6 + 5q-4 - 2q-2 + 4 + 2q6 - 2q8 + q10 - q12

HOMFLY-PT Polynomial:

4a-1z + 8a-1z3 + 5a-1z5 + a-1z7 - az-1 - 9az - 20az3 - 18az5 - 7az7 - az9 + a3z-1 + 4a3z + 8a3z3 + 5a3z5 + a3z7

Kauffman Polynomial:

- 2a-4z2 + 3a-4z4 - a-4z6 - 6a-3z3 + 9a-3z5 - 3a-3z7 + a-2z2 - 5a-2z4 + 10a-2z6 - 4a-2z8 - 6a-1z + 17a-1z3 - 15a-1z5 + 11a-1z7 - 4a-1z9 + 6z2 - 8z4 + 5z6 + z8 - 2z10 + az-1 - 11az + 39az3 - 53az5 + 32az7 - 9az9 - a2 + 8a2z2 - 21a2z4 + 12a2z6 - a2z8 - 2a2z10 + a3z-1 - 3a3z + 7a3z3 - 17a3z5 + 13a3z7 - 5a3z9 + 4a4z2 - 15a4z4 + 15a4z6 - 6a4z8 + 2a5z - 7a5z3 + 11a5z5 - 5a5z7 - a6z2 + 6a6z4 - 3a6z6 + 2a7z3 - a7z5

Khovanov Homology:

trqj r = -6 r = -5 r = -4 r = -3 r = -2 r = -1 r = 0 r = 1 r = 2 r = 3 r = 4 r = 5 j = 10                       1 j = 8                     2   j = 6                   4 1   j = 4                 6 2     j = 2               7 4       j = 0             9 6         j = -2           7 8           j = -4         7 8             j = -6       4 8               j = -8     2 6                 j = -10   1 4                   j = -12   2                     j = -14 1

Computer Talk. The data above can be recomputed by Mathematica using the package KnotTheory`. Following setup, the sample Mathematica session below reproduces most of the above data (Mathematica system prompts in blue, human input in red, Mathematica output in black):

In[1]:=	<< KnotTheory`
Loading KnotTheory` (version of August 30, 2005, 10:15:35)...
In[2]:=	Length[Skeleton[L]]
Out[2]=	2
In[3]:=	Show[DrawMorseLink[Link[11, Alternating, 173]]]
Out[3]=	-Graphics-
In[4]:=	PD[L = Link[11, Alternating, 173]]
Out[4]=	PD[X[8, 1, 9, 2], X[2, 9, 3, 10], X[10, 3, 11, 4], X[20, 14, 21, 13], > X[14, 6, 15, 5], X[4, 21, 5, 22], X[16, 7, 17, 8], X[22, 15, 7, 16], > X[18, 12, 19, 11], X[12, 20, 13, 19], X[6, 18, 1, 17]]
In[5]:=	GaussCode[L]
Out[5]=	GaussCode[{1, -2, 3, -6, 5, -11}, > {7, -1, 2, -3, 9, -10, 4, -5, 8, -7, 11, -9, 10, -4, 6, -8}]
In[6]:=	Jones[L][q]
Out[6]=	-(13/2) 3 6 10 14 15 16 -q + ----- - ---- + ---- - ---- + ---- - ------- + 13 Sqrt[q] - 11/2 9/2 7/2 5/2 3/2 Sqrt[q] q q q q q 3/2 5/2 7/2 9/2 > 10 q + 6 q - 3 q + q
In[7]:=	A2Invariant[L][q]
Out[7]=	-18 -16 2 2 -10 2 -6 5 2 6 8 10 4 + q - q + --- - --- + q + -- - q + -- - -- + 2 q - 2 q + q - 14 12 8 4 2 q q q q q 12 > q
In[8]:=	HOMFLYPT[Link[11, Alternating, 173]][a, z]
Out[8]=	3 3 5 a a 4 z 3 8 z 3 3 3 5 z 5 -(-) + -- + --- - 9 a z + 4 a z + ---- - 20 a z + 8 a z + ---- - 18 a z + z z a a a 7 3 5 z 7 3 7 9 > 5 a z + -- - 7 a z + a z - a z a
In[9]:=	Kauffman[Link[11, Alternating, 173]][a, z]
Out[9]=	3 2 2 2 a a 6 z 3 5 2 2 z z 2 2 -a + - + -- - --- - 11 a z - 3 a z + 2 a z + 6 z - ---- + -- + 8 a z + z z a 4 2 a a 3 3 4 2 6 2 6 z 17 z 3 3 3 5 3 7 3 > 4 a z - a z - ---- + ----- + 39 a z + 7 a z - 7 a z + 2 a z - 3 a a 4 4 5 5 4 3 z 5 z 2 4 4 4 6 4 9 z 15 z > 8 z + ---- - ---- - 21 a z - 15 a z + 6 a z + ---- - ----- - 4 2 3 a a a a 6 6 5 3 5 5 5 7 5 6 z 10 z 2 6 > 53 a z - 17 a z + 11 a z - a z + 5 z - -- + ----- + 12 a z + 4 2 a a 7 7 4 6 6 6 3 z 11 z 7 3 7 5 7 8 > 15 a z - 3 a z - ---- + ----- + 32 a z + 13 a z - 5 a z + z - 3 a a 8 9 4 z 2 8 4 8 4 z 9 3 9 10 2 10 > ---- - a z - 6 a z - ---- - 9 a z - 5 a z - 2 z - 2 a z 2 a a
In[10]:=	Kh[L][q, t]
Out[10]=	8 1 2 1 4 2 6 4 8 9 + -- + ------ + ------ + ------ + ------ + ----- + ----- + ----- + ----- + 2 14 6 12 5 10 5 10 4 8 4 8 3 6 3 6 2 q q t q t q t q t q t q t q t q t 7 8 7 2 2 2 4 2 4 3 > ----- + ---- + ---- + 6 t + 7 q t + 4 q t + 6 q t + 2 q t + 4 2 4 2 q t q t q t 6 3 6 4 8 4 10 5 > 4 q t + q t + 2 q t + q t
